Description

Fits

Year	Make	Model
2012 - 2018	Jeep	Wrangler

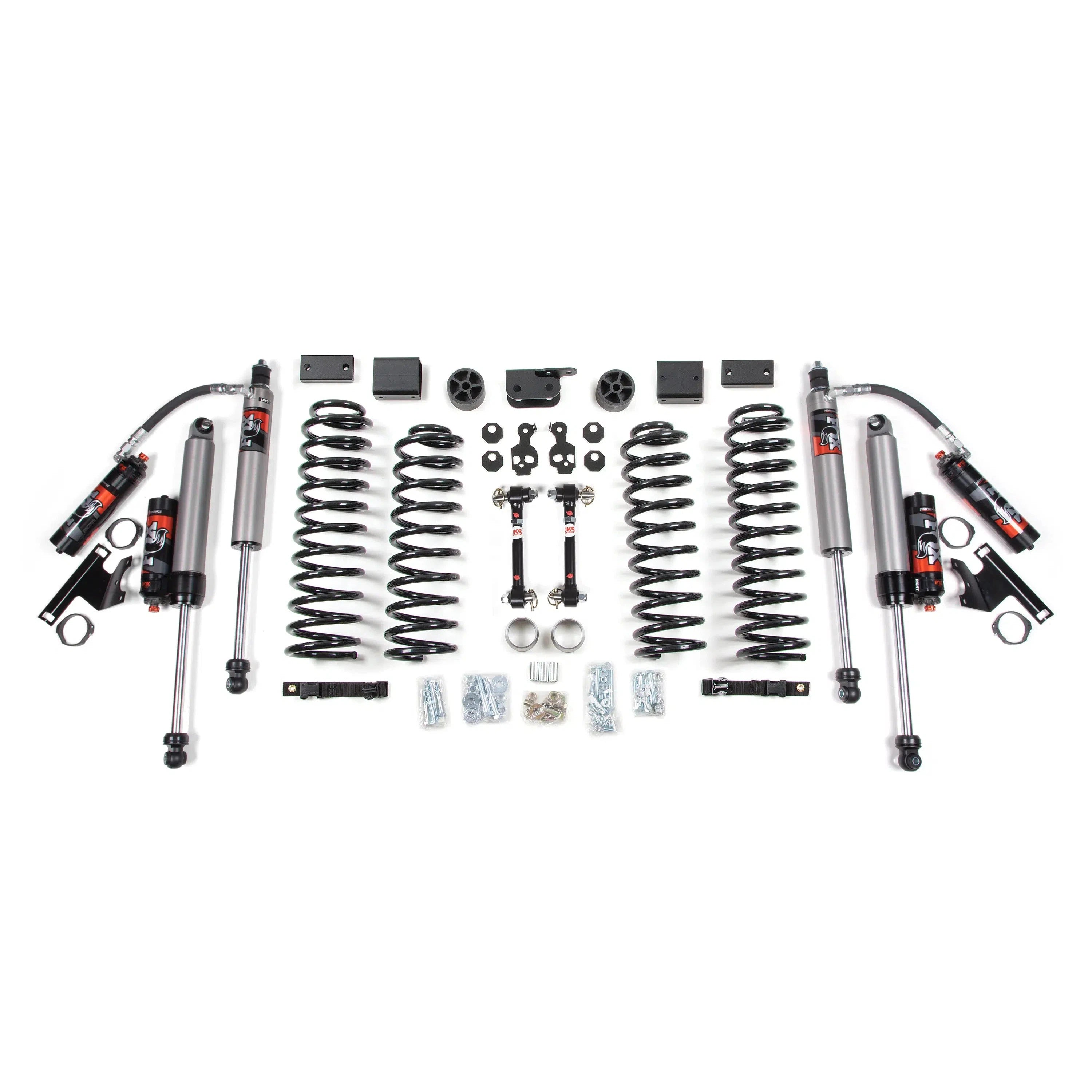

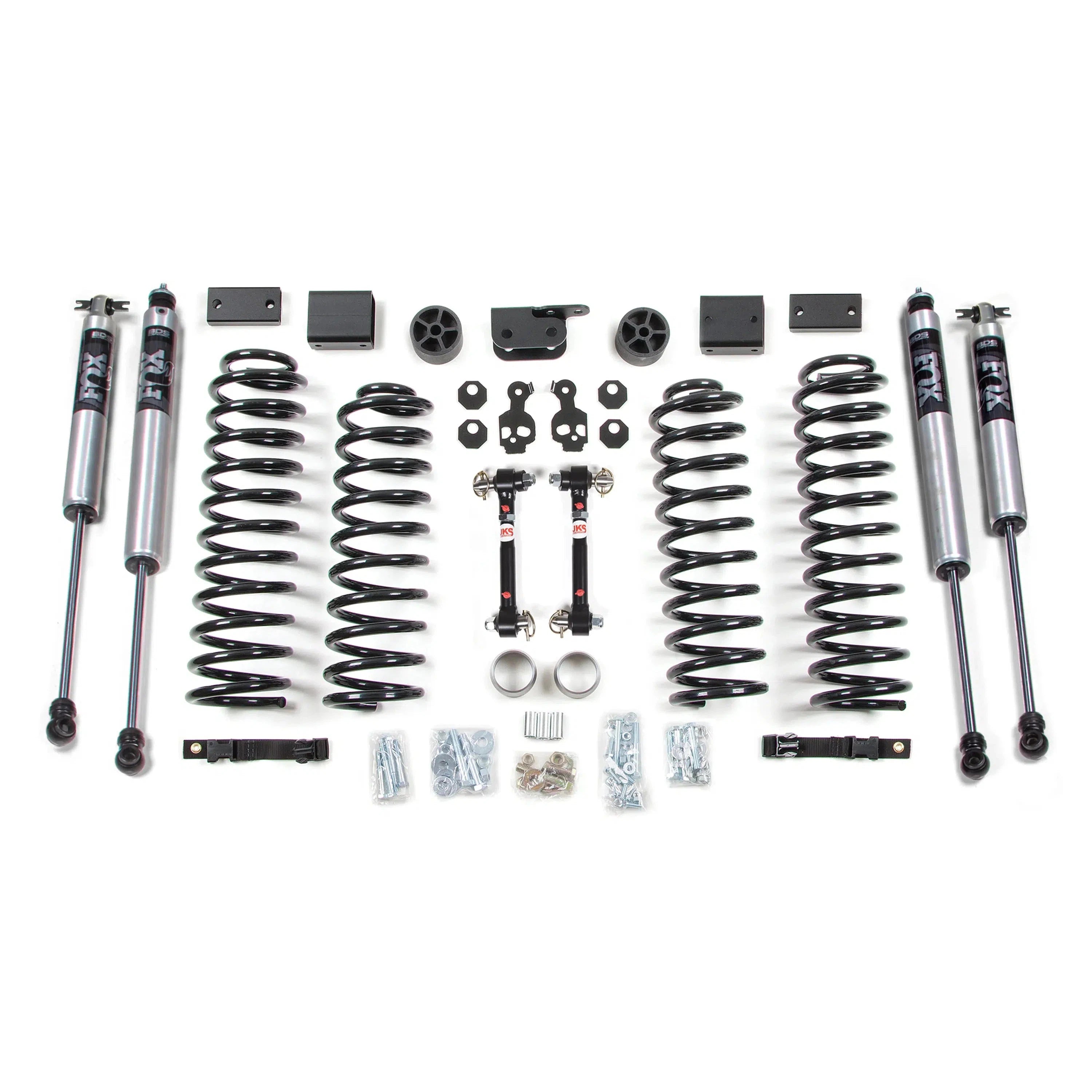

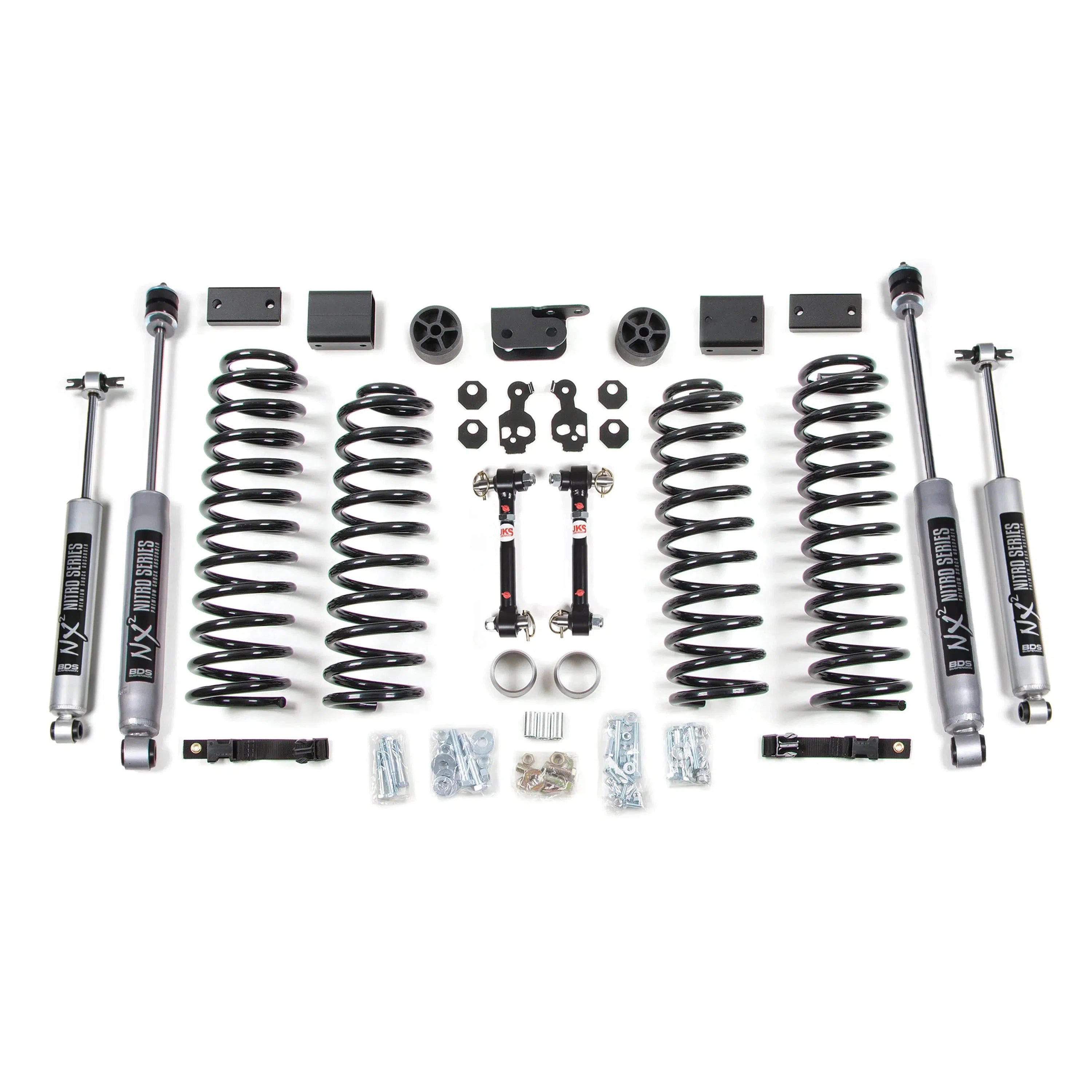

The Jeep Wrangler is a favorite among off - road lovers. With this BDS 3 - inch lift kit, you can boost its performance. It features 3 - inch Pro - Ride coil springs that can handle full coil bind and 2 - inch bump stop extensions to control compression travel while increasing wheel travel. It comes with options of fixed or quick - disconnect sway bar links.

Part Number: BDS1416H

Features

• ProRide coil springs enhance ride quality and articulation.
• Quicker sway bar disconnects and extended rear link improve off - road flexibility.
• The rear track bar bracket repositions the rear axle under the vehicle.
• Lower cam locks correct caster for alignment.
• Choose between NX2 gas or FOX 2.0 IFP performance series shocks for better damping.
• It provides clearance for 35 - inch tires.

Wheel & Tire Fitment:

• 35 x 12.5 with 16 x 8 and 4.5 - inch backspace

Additional Info

Sway Bar Link Option

Disconnects:

• Disconnect the front sway bar to gain 30% more axle articulation.
• Grease fittings make bushing lubrication easy for smooth and silent operation.
• Stainless tapered mounting posts and self - align bushings allow connection or disconnection on uneven surfaces.
• Spherical bushings offer 360 - degree rotation and 11 - degree misalignment capability.

Fixed Links:

• Required for Rubicon models with electronic disconnect.
• Improve handling with the proper sway bar operating angle.
• Heavy - duty steel construction with zinc finish.
• Polyurethane hourglass bushings ensure long life and quiet operation.

Notes

1. Removing the OE spring isolators can give you a 1 - inch lift if you want.
2. It's recommended to use 124408 rear track bar or 124308 rear track bar relocation when using factory wheels.
3. This kit meets FMVSS No.126 standards.
4. This kit is suitable for right - hand drive vehicles.

Using this lift kit is straightforward. First, make sure your Jeep Wrangler is from 2012 - 2018. You can choose between the fixed or quick - disconnect sway bar links according to your needs. If you want a bit more lift, you can remove the OE spring isolators to get an extra 1 - inch lift. When using factory wheels, it's a good idea to use the recommended rear track bar or relocation. As for maintenance, keep an eye on the sway bar links. For the disconnects, use the convenient grease fittings to lubricate the bushings regularly. This will ensure smooth and silent operation. The spherical bushings are quite durable, but still check them occasionally for any signs of wear. The heavy - duty steel fixed links with zinc finish are built to last, but a visual inspection every now and then won't hurt. And remember, this kit is compliant with safety standards and works well with right - hand drive vehicles, so you can drive with confidence.
