Description

Fits

Year	Make	Model
2020 - 2024	GMC/Chevrolet	1500 ZR2, AT4X

This amazing 6" + 2" lift kit combines with the factory 2" lift and ReadyLIFT’s 6" lift to give you a total of 8 inches of lift. It has been developed with thousands of engineering hours and comes with tons of cool features. You'll get insane clearance and boost your truck's off - road performance without any rattles, squeaks, or vibrations.

Part Number: 44 - 32620

Features

• Combined with factory lift, it provides 8 inches of total lift
• Proprietary lower strut clamshell design keeps factory geometry and uses factory strut
• Tube steel upper control arms with maintenance - free pivot bushings and 1 - ton ball joints (6" kit only)
• 3/16 - inch thick steel plate cross members and skid plate
• Anti - torsion boxed and gusseted plate steel differential drop brackets

Tire Fitment:

• Max recommended tire without trimming: 20x9 0 offset - 37x12.50 tire
• Max with trimming: 20x10 - 18 offset - 37x12.50
• Trimming may be needed for larger wheel/tire on front valance, front and rear felt liner edges, and front rear well edge mud flap

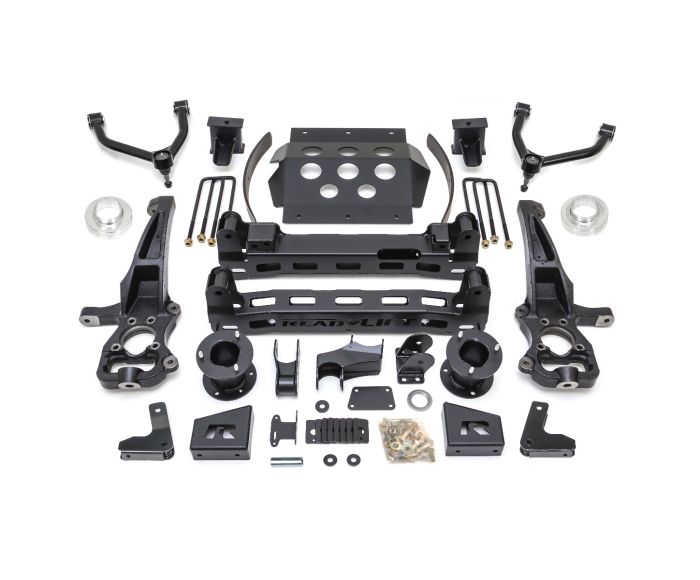

Additional Info

• Rear Diff Drop
• Diff Drop Crush Sleeve
• Sway Bar Bracket Driver
• Sway Bar Bracket Passenger
• Cam Block Off Plates
• Driver Strut Extension
• Passenger Strut Extension
• Pre - Load Spacers
• Driver Knuckle
• Passenger Knuckle
• Driver Fabricated Block (5 - inch Tall/Tapered 5 degree/Offset pin)
• Pass. Fabricated Block (5 - inch Tall/Tapered 5 degree/Offset pin)
• Rear Brake Line Bracket
• Rear ABS Bracket
• CV Axle Spacer (1/4 - inch thick outer spacer)
• Rear Shock Extensions
• Rear Shock Extension Washers
• Add A leaf kit
• Hardware pack

Notes

• Don't use the Auto 4 Hi feature
• Not compatible with rear mono - leaf springs

Using this lift kit is a great way to enhance your truck's off - road capabilities. First, make sure your truck is one of the compatible models from 2020 - 2024 GMC or Chevrolet 1500 ZR2, AT4X. Installation should be done carefully, following all the instructions that come with the kit. When it comes to tire fitment, start with the recommended max tire size without trimming. If you want to use a larger size, be prepared to do some trimming on the front valance, front and rear felt liner edges, and front rear well edge mud flap. As for maintenance, check the components regularly for any signs of wear or damage. Keep an eye on the joints and bushings, and make sure all the hardware is tightened properly. Remember, don't use the Auto 4 Hi feature, and this kit won't work with rear mono - leaf springs.
