Description
Fits
| Year | Make | Model |
| 2020 - 2024 | GMC/Chevrolet | 1500 ZR2, AT4X |
This amazing 4" + 2" lift kit combines with the factory 2" lift to give you a total 6" lift! After thousands of hours of engineering and development, it offers awesome features. It provides insane clearance and boosts your truck's off - road capabilities, all without any rattles, squeaks, or vibrations. Part Number: 44 - 32420
Features
- Combined with factory 2" lift and ReadyLIFT’s 4" lift, it gives a 6" total lift
- Proprietary lower strut clamshell design keeps factory geometry and uses the factory strut
- 3/16" thick steel plate cross members and skid plate
- Anti - torsion boxed and gusseted plate steel differential drop brackets
Tire Fitment:
- Recommended max tire without trimming: 20x9 0 offset - 35x12.50 tire
- Max with trimming: 20x10 -18 offset - 35x12.50 or 325/60R20
- Trimming larger wheel/tire needs work on front valance, front felt liner edge, rear felt liner edge and front rear well edge mud flap

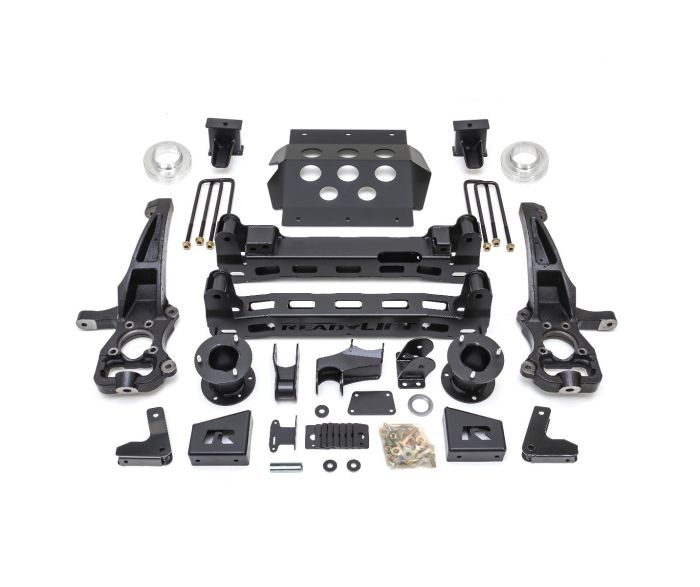

Additional Info
- Passenger Knuckle
- Driver Fabricated Block
- Pass. Fabricated Block
- Rear Brake Line Bracket
- Rear ABS Bracket
- CV Axle Spacer
- Rear Shock Extensions
- Rear Shock Extension Washers
- Hardware pack
Notes
- Don't use the Auto 4 Hi feature
- Not compatible with rear mono - leaf springs
Installation
Click here to view installation instruction
This lift kit is for 2020 - 2024 GMC/Chevrolet 1500 ZR2 and AT4X models. To use it, first, make sure your vehicle meets the fitment requirements. The kit combines with the factory 2" lift to give a total 6" lift. When it comes to tires, if you don't want to trim, the recommended max tire is 20x9 0 offset - 35x12.50. But if you want larger ones, you'll need to do some trimming on parts like the front valance. Don't use the Auto 4 Hi feature and note that it's not compatible with rear mono - leaf springs. For maintenance, regularly check the steel parts for any signs of wear or damage. And make sure all the brackets and hardware are tightened properly. If you need to install it, click the provided link for detailed instructions.
