Description
Fits: 2015 - 2021 Toyota Tundra
This ReadyLift lift kit is designed to maintain proper alignment and geometry. It comes with bump stop extensions all around and sway bar frame mount brackets to keep the front sway bar in the factory position. The shock stem extensions let you use high - quality Bilstein/Fox reservoir shocks without changing the shock's compressed and extended length.
Part Number: 44 - 5640

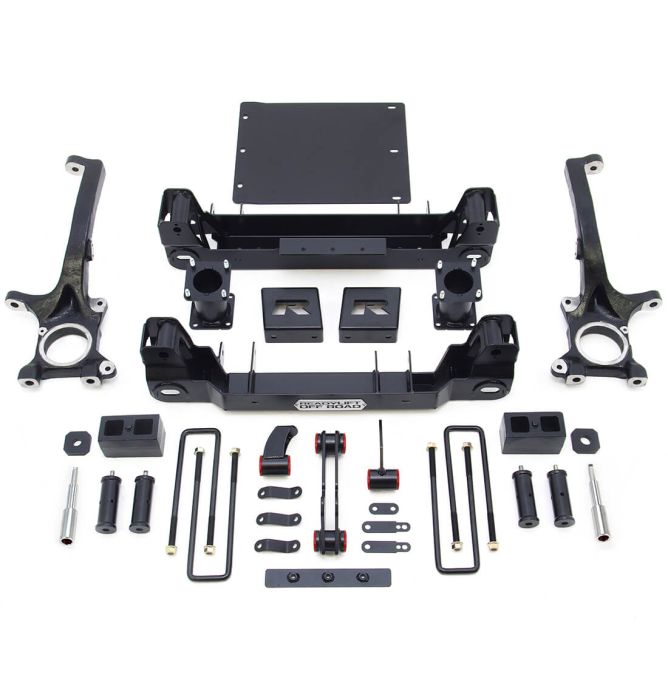

Features
- Two iron ductile knuckles that work with factory tie rods
- Two top mount strut extensions
- Two laser - cut and boxed steel dropped crossmembers
- Two sway bar drop spacers
- Four bump stop extensions
- OEM - style cast iron rear lift blocks with new u - bolts
- An easy - to - install differential drop mount system
- One skid plate
- Two rear Bilstein shock stem extensions
- Allows use of stock 20 - inch wheels
Tire Fitment:
- Maximum 35 - inch tire diameter
- 35x12.50 tires fit on a 9 - inch wide wheel with +25 offset without rubbing
Notes
- Doesn't fit factory 18 - inch wheels
- Won't work with the TRD rear sway bar option
- You may need to remove front mud flaps depending on tire tread design
Installation
Click here for installation instructions
Using this lift kit is a great way to enhance your 2015 - 2021 Toyota Tundra. First, when it comes to installation, just click on the provided link for step - by - step instructions. It's an easy - to - install system, so you can get it up and running quickly. For tire fitment, remember that the maximum tire diameter is 35 inches, and 35x12.50 tires work well on a 9 - inch wide wheel with +25 offset without rubbing. But keep in mind that it doesn't fit factory 18 - inch wheels and won't work with the TRD rear sway bar option. Also, depending on the tire's tread design, you might need to remove the front mud flaps. For maintenance, regularly check the components like the knuckles, crossmembers, and shock stem extensions. Make sure all the bolts are tightened properly. If you notice any unusual noises or vibrations while driving, it's a good idea to inspect the kit right away.
