Description

Fits

Year	Make	Models
2014 - 2016	GMC/Chevrolet	1500

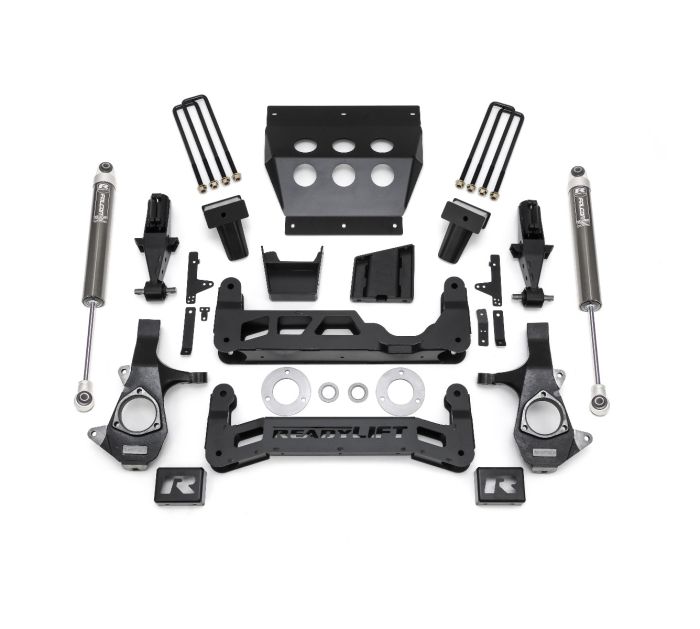

This is the ultimate lift kit for your 1500 truck. It's designed for 1500 trucks with factory Forged Steel front suspension. You can keep the factory turning radius and only increase the track width by less than 0.5 inches per side. If you want to raise the ground clearance, use bigger tires, and explore tough terrains without sacrificing the factory ride quality, this kit is perfect for you.

Part Number: 44 - 34710

Features

• For 2WD and 4WD only
• The 'clam - shell' lower strut extension lets you use the factory struts
• TCT lower bushings give a precise pivot point and keep the factory ride
• Boxed steel front and rear cross members and a full - width front skid plate are made of 3/16 - inch thick steel. You can still use the OE front plastic gravel guard.
• 1/4 - inch boxed plate steel differential drop brackets have a double gusset and a boxed center rib to handle front differential torsional twisting.
• 3/16 - inch thick plate steel rear lift blocks
• Built - in bump stop landings and an offset pin design center the axle and keep the proper pinion angle
• Extended length Falcon 1.1 Monotube rear shocks

Tire Fitment:

• Allows up to 35 - inch tall off - road tires
• Requires at least a 9 - inch wide wheel with - 12 offset

Notes

• Works with trucks with or without MagneRide
• ReadyLIFT hasn't tested the Single Cab configuration for fitment and drivability
• Not for AWD applications
• Not recommended for GMC Denali 1500 with REAR MagneRide or other models with Rear MagneRide. Only compatible with Front MagneRide.

This lift kit is a great addition to your 2014 - 2016 GMC or Chevrolet 1500 truck. To install it, make sure your truck has a factory Forged Steel front suspension and is either 2WD or 4WD. When choosing tires, go for up to 35 - inch tall off - road tires and use at least a 9 - inch wide wheel with - 12 offset. Note that this kit won't work with AWD trucks. If your truck has Rear MagneRide, like the GMC Denali 1500, it's not recommended. For the Single Cab configuration, ReadyLIFT hasn't checked the fitment and drivability. Maintenance is pretty simple. Regularly check the components for any signs of wear or damage, especially the strut extensions, bushings, and cross members. Keep them clean and lubricated as needed. That way, your lift kit will keep performing well and you can enjoy your off - road adventures.
