Description

Click here to customize this Kit

Fits

Year	Make	Model	Type
2019 - 2024	Dodge / Ram	2500 w/ 6.7L Cummins & 4x4	w/ Rear Coil Springs

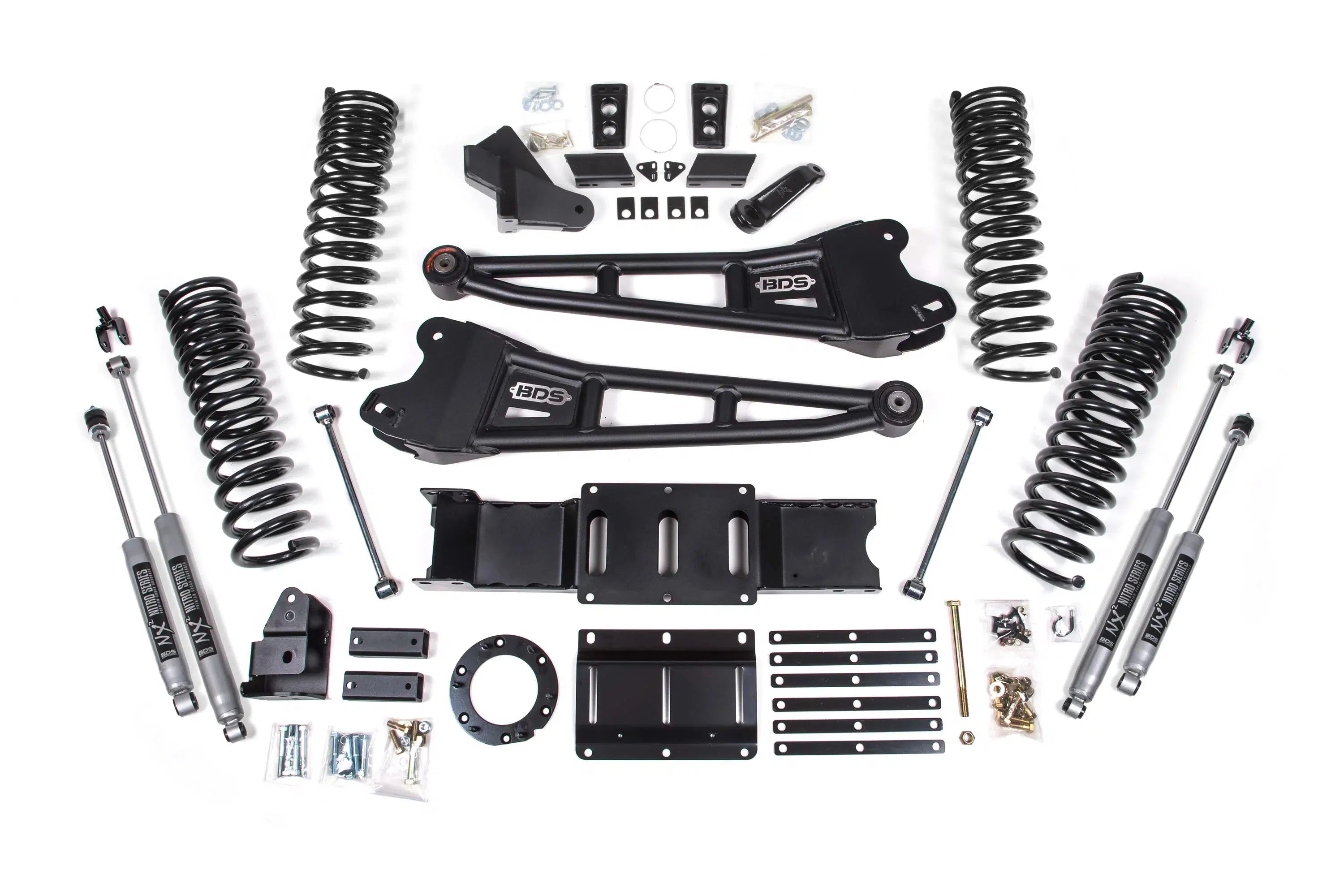

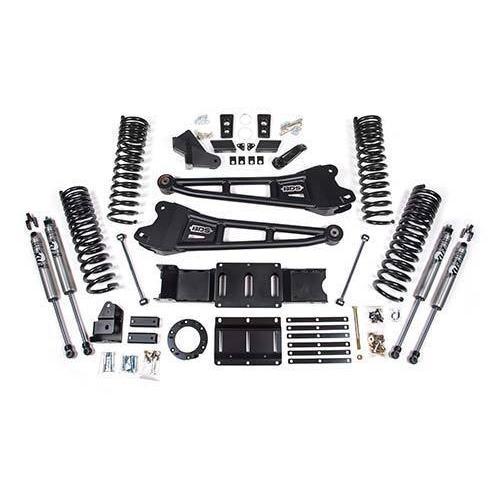

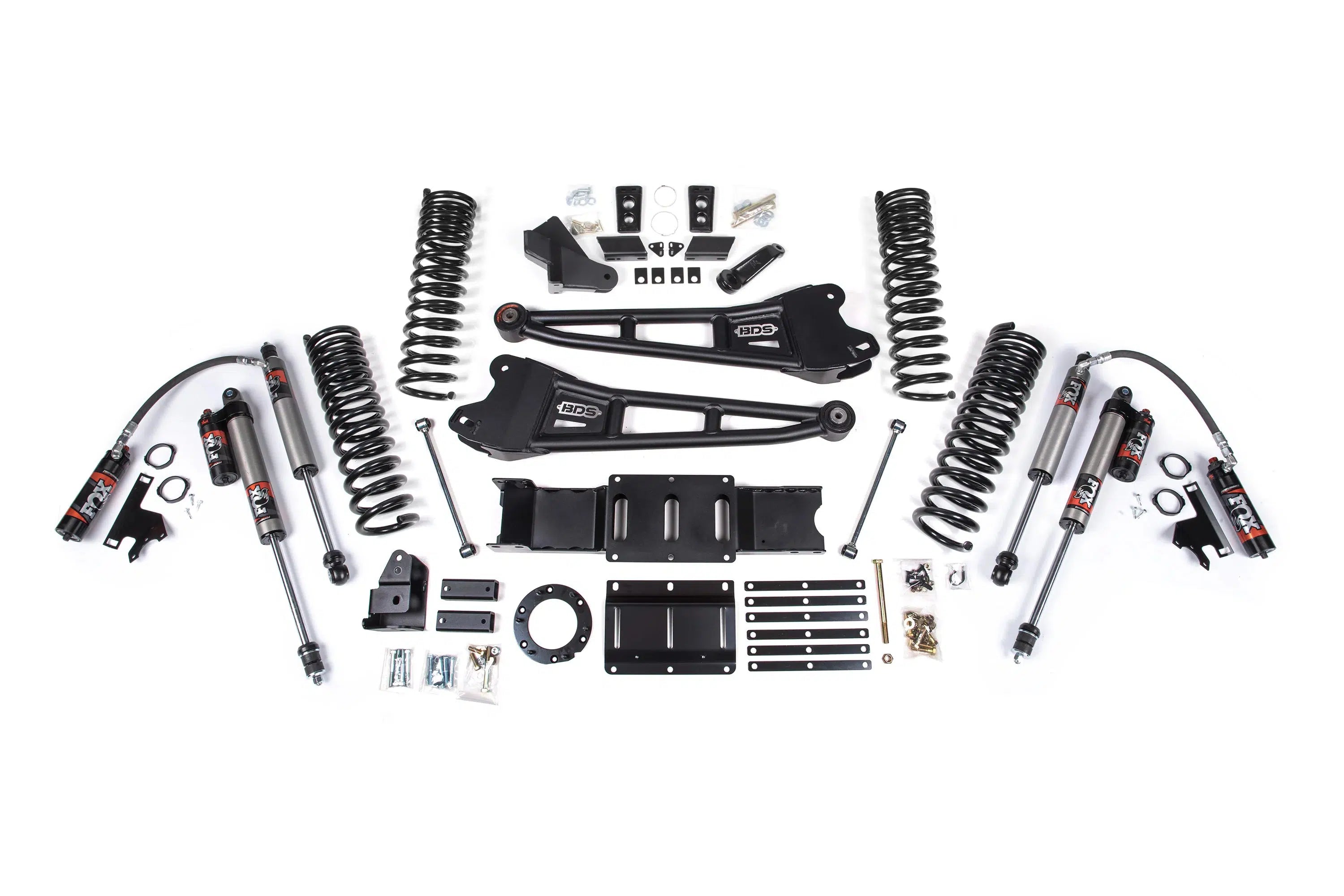

BDS Suspension has expanded its offerings for 2019+ RAM 2500 4WD Diesel trucks. This kit is a game - changer! It enhances the look and performance of your RAM, giving it better off - road capabilities with space for larger tires while keeping great on - road handling.

Part Number: BDS1680H

Features

• Heavy - duty tubular radius arms boost strength, provide more ground clearance and correct caster
• 6' high - strength progressive - rate front coil springs ensure a smooth ride on any terrain
• Extended polyurethane bump stops limit upward travel
• Brake line brackets allow full droop
• Heavy - duty track bar relocation bracket repositions the front axles
• Forged drop pitman arm corrects steering angles
• Sway bar correction maintains handling performance
• Heavy - duty transmission crossmember
• 5' Rear block
• Transfer case indexing ring corrects front driveline angles
• BDS NX2 gas shocks improve ride and off - road performance
• Allows clearance for up to 37' tires
• Indexing rings for 6 - bolt and 8 - bolt trucks

Tire & Wheel Combinations:

• 37x13.50 w/ 20x9 and 5.625'
• 37x12.50 w/ 20x9 and 4.5 - 5.625'
• 37x13.50 w/ 18x9 and 5.625'

Notes

• Doesn't fit rear air - ride equipped models
• Doesn't fit Power Wagon models
• Designed for diesel models

Installation

• Click Here For Installation Instructions
• Difficulty: 3 (where 1 = easiest and 5 = complicated)

Using this lift kit is a great way to enhance your 2019 - 2024 Dodge/Ram 2500 with a 6.7L Cummins engine and 4x4. To use it, first, click the link for installation instructions. The difficulty level is 3, so it's not super easy but also not overly complicated. When choosing tires and wheels, you can refer to the provided combinations like 37x13.50 with 20x9 and 5.625'. Just a heads - up, this kit won't work on models with rear air - ride or Power Wagon models, and it's made for diesel trucks. For maintenance, regularly check the heavy - duty tubular radius arms, coil springs, and shocks. Make sure the brake line brackets and track bar relocation bracket are in good condition. If you notice any unusual noises or handling issues, it might be time for a more thorough inspection.
