Description
Fits
| Year | Make | Model |
| 2017 - 2024 | Ford | F - 250/F - 350 Super Duty |
The ReadyLIFT 69 - 2740 SST Lift Kit is your perfect solution to raise your Superduty. It provides a 2.5 - inch front lift and a 2.0 - inch rear lift, allowing you to install up to 37 - inch tires while keeping a slight rake for towing or hauling.
This kit uses ReadyLIFT's well - loved 2.5 - inch coil spacers and sound isolators, ensuring a great OEM - like ride and quietness. The shock extensions let you keep using your brand - new front shocks instead of replacing them with aftermarket ones. There are sway bar drop mount spacers to position the sway bar correctly, bump stop extensions to maintain the factory distance between the bump stop and axle, and a carrier bearing spacer to adjust the driveshaft angle as needed. Plus, it includes a popular track bar relocation bracket for better steering quality.
Part Number: 69 - 2740
Features
- Keeps your factory ride quality
- Enables installation of up to 37 - inch tires
- 2.5 - inch front lift
- 2 - inch rear lift
Tire Fitment:
- 35 - inch maximum tire diameter
- 35x12.50 for no rub on a 9 - inch wide wheel with +25 offset
- 17 - inch - 35X12.5R17
- 18 - inch - 315/70R18
- 20 - inch - 295/65R20 / 325/60R20
- 22 - inch - 35X12.5R22

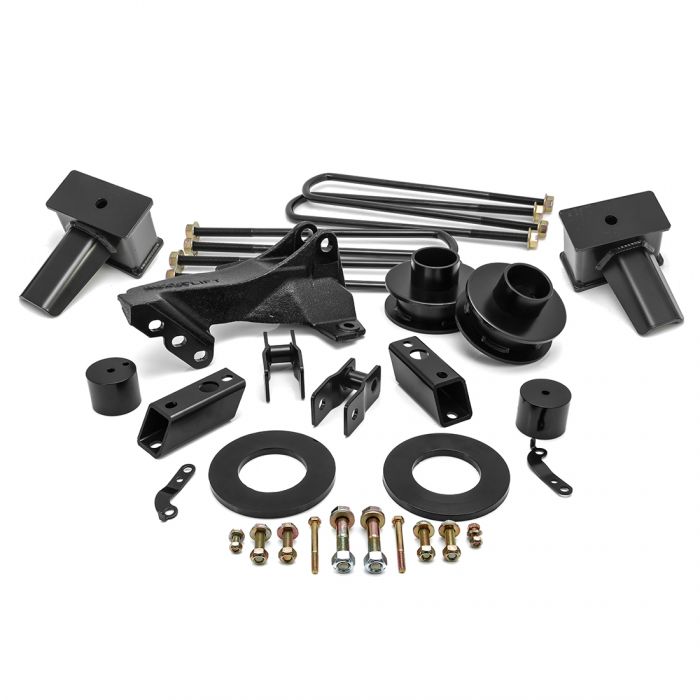

Includes:
- 2.5 - inch coil spring spacers with sound isolators
- Fabricated steel rear lift blocks with longer u - bolts
- CNC machined billet carrier bearing spacer
- OEM - style front track bar relocation bracket
- Longer sway bar end links, brake line bracket, bump stop extensions
- Front shock extensions
Notes
- For use on 4WD Single Rear Wheel (SRW) trucks with a 1 - piece driveshaft only. This kit will not work on Tremor edition trucks.
- The lift blocks in this kit don't work with aftermarket or factory add - on air spring/load leveling kits attached to the bump stop tangs. Using this type of airbag system will void all block warranties and may cause block bump stop tang failure.
- 2020 MY Super Duty may sit a bit taller in the rear than previous models due to Ford factory block height differences. The extra rake looks great with the vehicle's body lines.
Installation
This ReadyLIFT 69 - 2740 SST Lift Kit is designed for 2017 - 2024 Ford F - 250/F - 350 Super Duty trucks. To use it, first, make sure your truck is a 4WD Single Rear Wheel (SRW) with a 1 - piece driveshaft and not a Tremor edition. When installing, follow the instructions carefully. The kit includes all the necessary parts like coil spring spacers, rear lift blocks, and shock extensions. During installation, pay attention to the correct positioning of parts such as the sway bar and driveshaft angle. For tire fitment, you can choose different tire sizes according to the provided guidelines. Remember, the lift blocks in this kit won't work with certain air spring/load leveling kits. If you use such kits, it will void the block warranties and may cause block failure. As for maintenance, regularly check the tightness of all the bolts and parts. If you notice any unusual noises or changes in the ride quality, it's a good idea to inspect the kit thoroughly. Also, be aware that the 2020 model year Super Duty may have a slightly taller rear due to factory differences, which is normal and looks good with the vehicle's body.
