Description
Click Here for Customization
Fits
| Year | Make | Model | Engine |
| 2019 - 2024 | Dodge | Ram HD | 6.7L Cummins |
This BDS system transforms your truck into an 8 - foot lifted 4 - Link powerhouse! The full - replacement 4 - Link system uses four large control arms with greaseable ends. It corrects alignment and tire placement in the wheel well, reduces caster change during wheel travel, and gives you better control on and off the road.
Part Number: 1728H
Features
- 8' diesel - specific progressive rate coil springs ensure a smooth ride on any terrain.
- A forged drop pitman arm corrects steering angles.
- An HD bar drop bracket centers the front axle.
- Polyurethane bump stops limit up travel, and brake line brackets allow full droop.
- Sway bar drop brackets reposition the OE sway bar for top - notch performance.
- Factory stamped steel radius arms are converted to 4 - link with 1/4' steel brackets.
- High - strength upper and lower control arms limit caster change for predictable handling.
- An HD replacement transmission crossmember and a transfer case indexing ring reposition the front driveline output. An aftermarket front driveshaft (not in the kit) is needed.
Wheel & Tire Combinations:
- 40x13.50 w/17x9 and 4.5 - 5.5' back spacing
- 40x13.50 w/20x9 and 4.5 - 5.5' back spacing
Additional Info

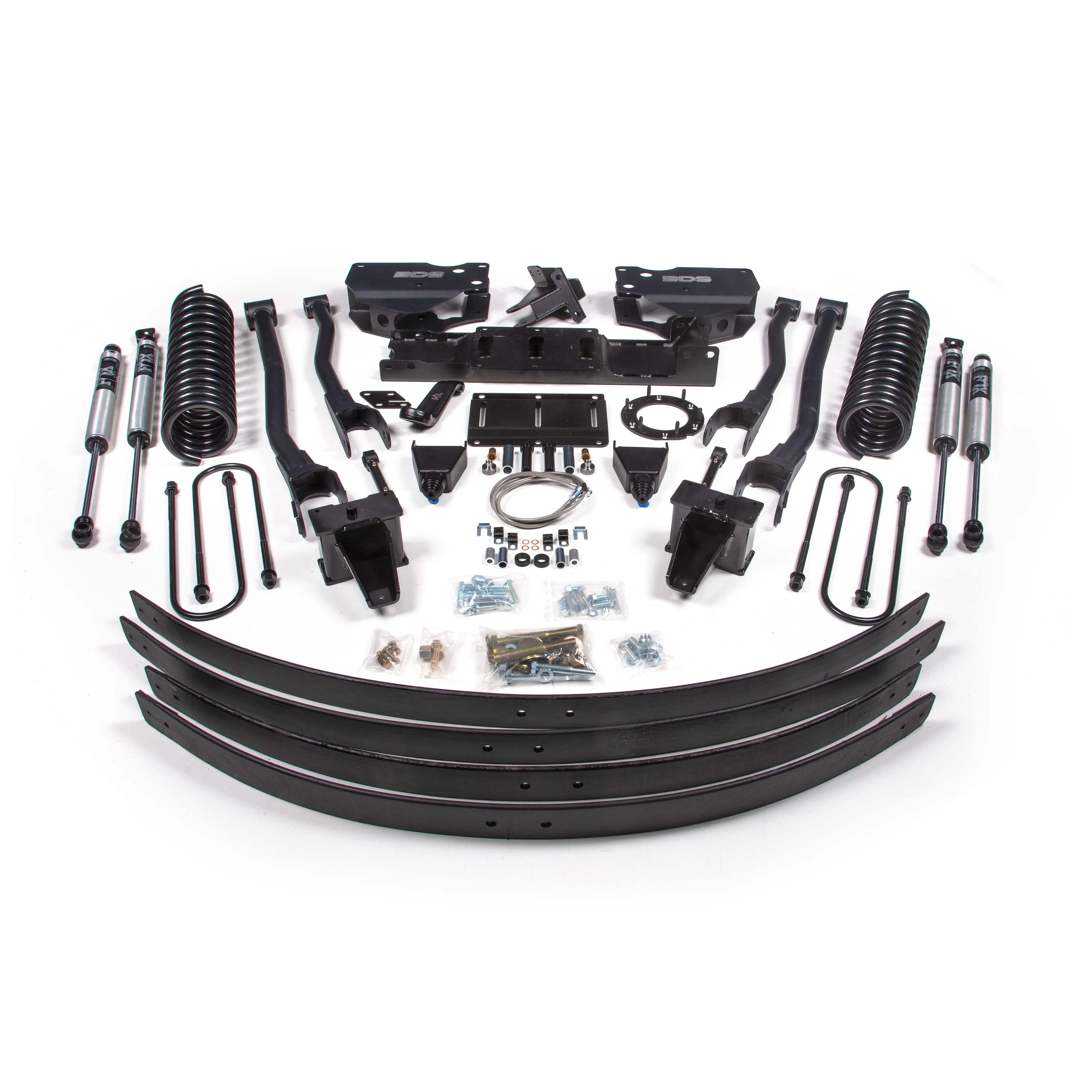

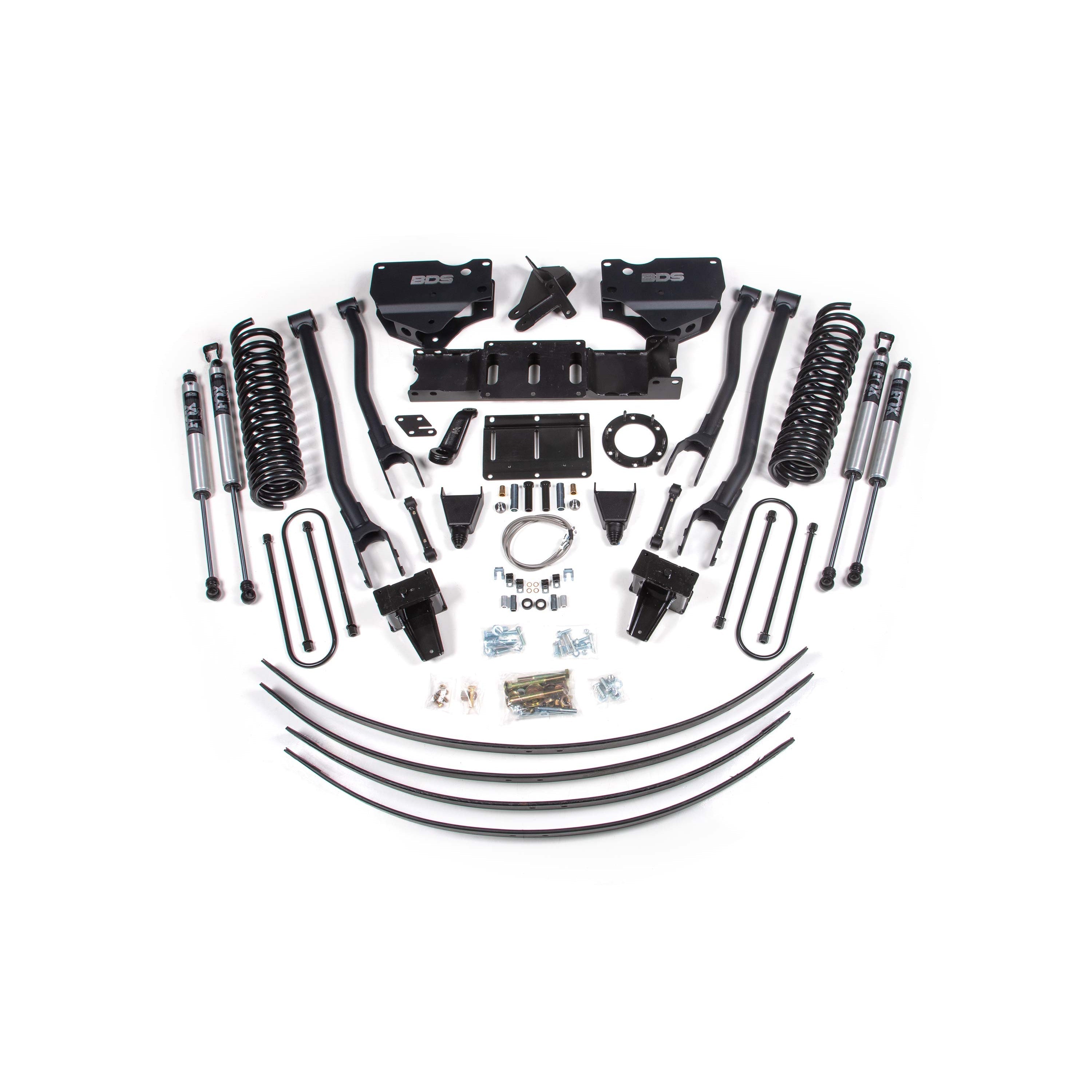

Base Kit Components:
| (1) | 012434 | 2019 - 2022 Ram 2500 / 2019 - 2022 Ram 3500 |
| (1) | 012616 | 2019 - 2023 Ram 3500 8' Rear Box Kit w/AAL |
| (1) | 012811 | 2019 - 2023 Ram 2500 / 2019 - 2022 Ram 3500 |
| (2) | 032802 | 2013 - 2023 Ram 3500 8in Front Coil - Dsl (S |
| (1) | 113228 | 2013 - 2023 Ram 3500 Dual Add - A - Leaf |
| (1) | 122624 | 2019 - 2023 Ram 2500 / 2019 - 2022 Ram 3500 |
| (2) | 85754 | NX² Shock Absorber |
| (2) | 85761 | NX² Shock Absorber |
Notes
- Not compatible with Mega Cab Models with 8 - bolt Transmission (Aisin)
- Not for DRW models
- Won't work with cab and chassis
- Recoil Traction bars are recommended
- For diesel models only
- Won't fit trucks with rear airbags
- This kit needs an aftermarket front driveshaft (not provided) along with the indexing ring kit. Install the kit first and then measure for the driveshaft. The vehicle can be driven without the front driveshaft.
Using this lift kit is a great way to upgrade your 2019 - 2024 Dodge Ram HD with a 6.7L Cummins engine. First, make sure your truck meets all the compatibility requirements mentioned in the notes. If it does, start by installing the base kit components as described in the additional info section. Remember, you'll need to use an aftermarket front driveshaft in addition to the provided indexing ring kit. It's a good idea to install the kit first and then measure for the driveshaft to get the correct length. When it comes to maintenance, regularly check the greaseable ends of the control arms and lubricate them as needed. Also, inspect the shock absorbers and bump stops for any signs of wear. Keep in mind that this kit won't work with certain models like Mega Cab with 8 - bolt Transmission, DRW models, or trucks with rear airbags. And if you want better performance, consider using the recommended Recoil Traction bars.
