Description
Fits: 2022 - 2024 Toyota Tundra.
This 6-inch ReadyLift lift kit is engineered for easy setup. It retains suspension geometry and proper driveline angles, giving you great driving and handling performance, no matter what you encounter on the road.
Part Number: 44 - 52660
Features
- Keeps the factory turning radius
- Compatible with auto - adjust headlights
- CNC - bent, welded, and boxed sub - frame drop assemblies maintain suspension shape
- Boosts ground clearance
- Requires minimal trimming
- Sub - assembly positions the differential correctly to keep CV axle and driveline angles right
Tire Fitment: Allows 5.75 - inch backspace (18 - 20mm Offset) on 20x9 with 35 - inch tires. Max tire with trimming: 5.5 - inch backspace (10 - 13mm Offset) on 20x9 with 37 - inch tires.

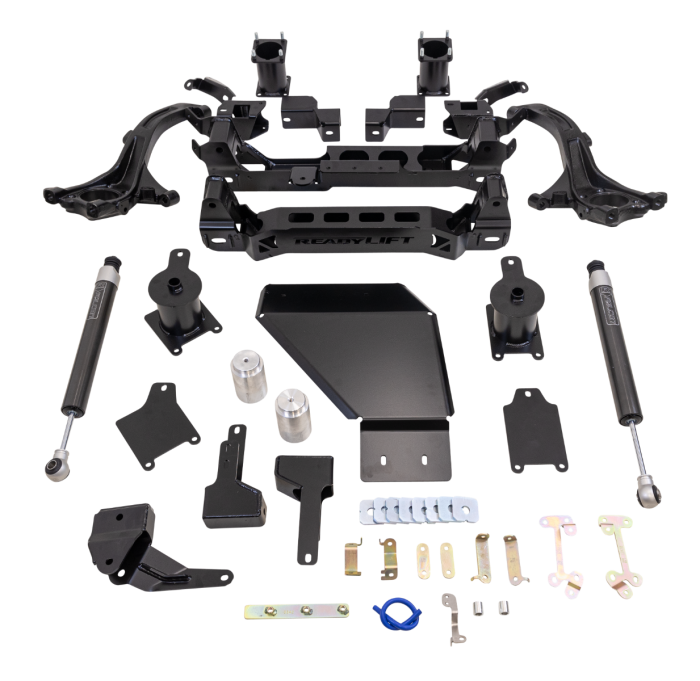

Additional Info
- Front & Rear Crossmember
- Skid Plate
- Front Brake Line Bracket - Right
- 2 Front Brake Line Bracket - Right
- 1 Front Brake Line Bracket - Left
- 1 Front Brake Line Bracket - Left
- 2 Driver & Passenger Knuckle
- Front Strut Spacer
- Driver & Passenger Front Sway Bar Drop
- Cam Block Off Plates
- Headlight Sensor Bracket Sleeve and HSB - Left
- Driver & Passenger Front Bump Stop
- Rear Crossmember Nut Plate
- 1/4 - inch Front Differential Vent Hose
- Rear Trackbar Bracket
- Driver & Passenger Rear Sway Bar Drop
- Driver & Passenger Rear Bump Stop
- Rear ABS Relocator
- Rear ABS Bracket
- Falcon 1.1 Rear Shock
- Hardware pack
Notes
- Not for 2022+ Tundra TRD Pro with Bilstein coilover shocks, TRD rear sway bar option, or trucks with Load - Leveling Rear Height Control Air Suspension or Adaptive Variable Suspension (AVS)
- Works only with factory 20 - inch wheels, not 18 - inch ones
- Most 20 - inch or larger aftermarket wheels are compatible (check fitment before installation)
- Use part number 44 - 52620 for Tundra with Rear Coil Spring.
- Toyota recommends OEM lift kit cv shafts PT362 - 3432B and PT362 - 3431B on all lifted 22 - UP Tundra's. Not using these may cause damage in 4WD not covered by the manufacturer.
Using this lift kit is a breeze. First, make sure your vehicle is a 2022 - 2024 Toyota Tundra and doesn't have the restricted features like the 2022+ Tundra TRD Pro with Bilstein coilover shocks. The kit only works with factory 20 - inch wheels, so check your wheel size. If you're using aftermarket wheels, confirm fitment before installation. When it comes to tire fitment, you can use 5.75 - inch backspace (18 - 20mm Offset) on 20x9 with 35 - inch tires. With some trimming, you can go up to 5.5 - inch backspace (10 - 13mm Offset) on 20x9 with 37 - inch tires. Installation is easy as it's engineered to retain suspension geometry and proper driveline angles. Remember, for Tundra with Rear Coil Spring, use part number 44 - 52620. Toyota also recommends using OEM lift kit cv shafts PT362 - 3432B and PT362 - 3431B on all lifted 22 - UP Tundra's to avoid damage in 4WD. As for maintenance, regularly check all the components like the crossmembers, skid plate, and brake line brackets for any signs of wear or looseness. Make sure to keep the hardware tight and the shocks in good condition.
