Description
Fits: 2007 - 2021 Toyota Tundra

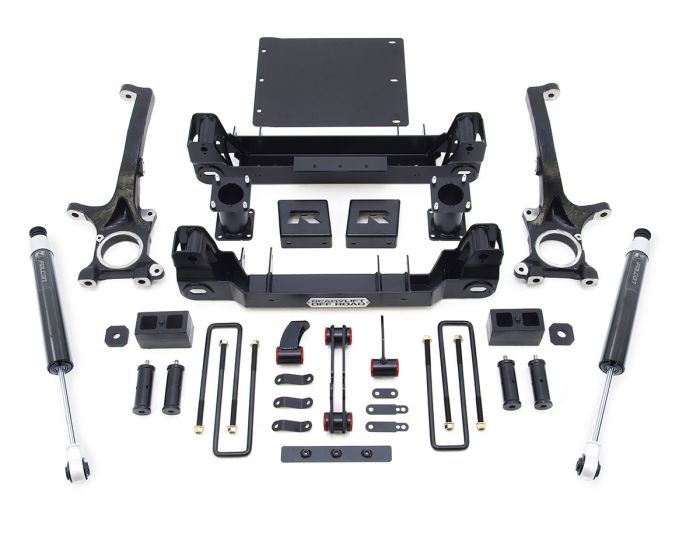

This lift kit is a top choice for those seeking a significant lift. It comes with ultra - strong sub - frame drop assemblies made through laser cutting, CNC bending, welding, and boxing. These assemblies maintain proper suspension geometry and boost ground clearance. The precision - designed iron front knuckles ensure a perfect fit with minimal trimming of factory tie rods.
Part Number: 44 - 56770
Features
- Two iron ductile knuckles enabling the use of factory tie rods
- Two 6 - inch strut extensions
- Two laser - cut and boxed steel dropped crossmembers
- Two sway bar drop spacers
- Four bump stop extensions
- OEM - style cast iron rear lift blocks with new U - bolts
- A complete and easy - to - install differential drop mount system
- One skid plate
- Two Falcon 1.1 Monotube series shocks
Tire Fitment:
- Maximum tire diameter of 35 inches
- 35x12.50 tires fit without rubbing on a 9 - inch wide wheel with +25 offset
- 18 - inch: 315/70R18
- 20 - inch: 295/65R20 or 325/60R20
- 22 - inch: 35X12.5R22
Notes
- Not suitable for 2015 - 2021 Tundra TRD Pro with Bilstein coilover shocks and the TRD rear sway bar option. It only works with factory 20 - inch wheels, not 18 - inch ones.
Installation
Click here to view installation instructions
Using this lift kit on your 2007 - 2021 Toyota Tundra can significantly enhance its off - road performance and appearance. First, make sure your vehicle meets the fitment requirements. Check if your Tundra is between 2007 and 2021 and not a 2015 - 2021 TRD Pro with Bilstein coilover shocks and the TRD rear sway bar option. Also, ensure you have factory 20 - inch wheels. When it comes to installation, follow the provided instructions carefully. If you're not confident in your mechanical skills, it's best to have a professional handle the job. For tire fitment, you can choose from the recommended sizes to avoid rubbing. After installation, regularly check the components for any signs of wear or loose parts. Keep the kit clean and lubricate moving parts as needed to ensure its long - term performance and durability.
