Description

Fits

Year	Make	Model
2019 - 2023	Dodge Ram	1500 with air ride

Choose between Bilstein 5100 or Falcon 1.1 shocks. This kit comes with rear control arm brackets for better small - bump sensitivity and mid - stroke support. The laser - cut HD steel front cross members and differential drops keep the factory geometry and ensure proper differential rotation, so there's no driveline vibration in 4WD or Auto - 4HI.

Part Number: 44 - 19620/ 44 - 19621

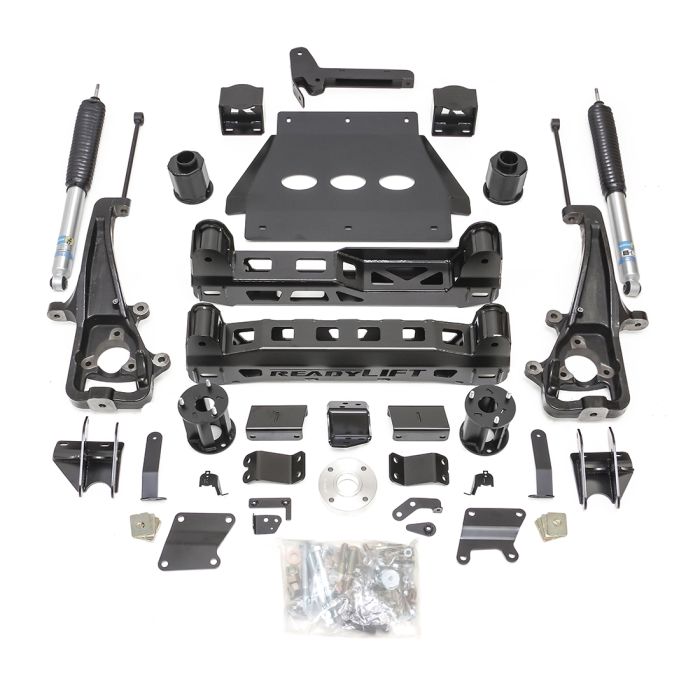

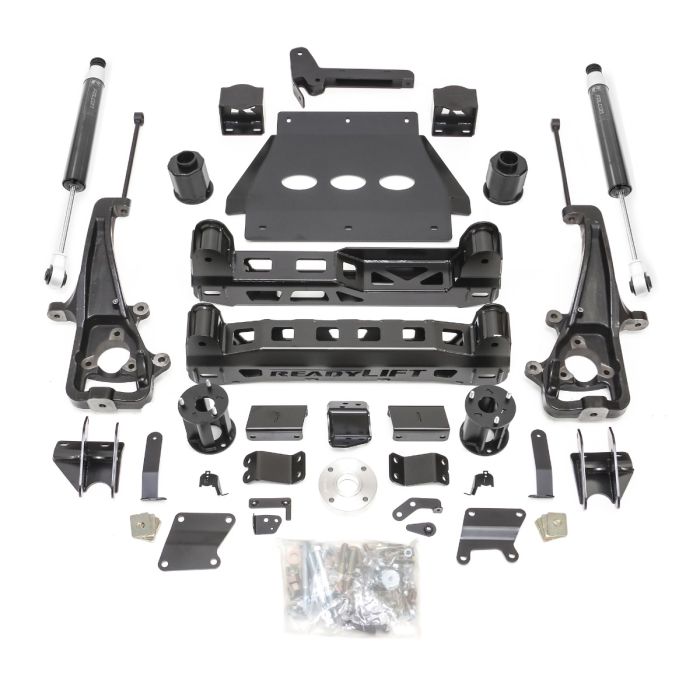

Features

• Two crossmembers
• Two cast iron knuckles
• Four top mount air strut extensions
• Two Bilstein 5100 or Falcon 1.1 shocks
• One rear panhard bar bracket
• Two sway bar end links
• One skid plate
• All necessary hardware and brackets

Tire Fitment:

• 44 - 19620 6 - inch Big Lift Kit - Recommended max tire without trimming: 20x9 0 offset - 37x12.50 tire
• Max with trimming: 20x10 - 18 offset - 37x12.50
• For Ram 1500 with factory air ride
• Not for 18 - inch wheels
• Trimming the front valance, front felt liner edge, rear felt liner edge, and front rear well edge mud flap is required for larger than recommended wheel/tire.

Notes

• This kit is for the RAM 1500 with factory air ride
• ReadyLIFT hasn't validated the Single Cab configuration for fitment and drivability
• This kit isn't compatible with standard suspension, non - air ride suspension models, diesel engine applications, Rebel Air Ride, or Ram TRX

This lift kit is designed for 2019 - 2023 Dodge Ram 1500 with factory air suspension. To install, first, make sure your vehicle meets the fitment requirements. You'll need to choose between Bilstein 5100 or Falcon 1.1 shocks. Follow the instructions carefully when installing the crossmembers, knuckles, air strut extensions, and other parts. When it comes to tire fitment, if you use the 44 - 19620 6 - inch Big Lift Kit, remember the recommended tire sizes. For larger than recommended wheel/tire, you'll need to do some trimming on the front valance, felt liner edges, and mud flaps. Note that this kit won't work with 18 - inch wheels, standard suspension models, diesel engine applications, Rebel Air Ride, or Ram TRX. Also, the Single Cab configuration hasn't been tested for fitment and drivability. For maintenance, regularly check all the hardware and brackets for tightness. Inspect the shocks for any signs of damage or leakage. Keep the skid plate clean to prevent rust and ensure it's doing its job of protecting your vehicle's undercarriage.
