Description

Fits

Year	Make	Model
2014 - 2018	GMC/Chevrolet	1500

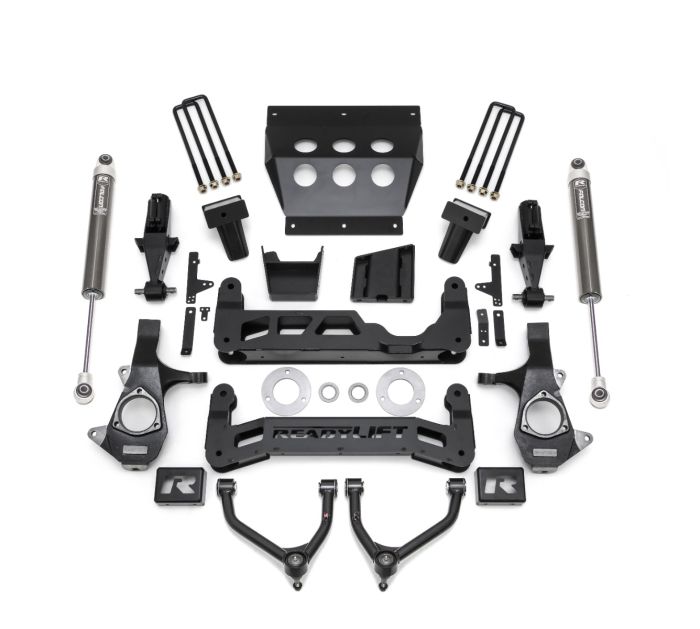

This is the ultimate big lift kit for your 1500 truck. It's designed for trucks with factory - forged steel front suspension. It keeps the factory turning radius and limits the track width increase to less than 0.5 inches per side. If you want to boost ground clearance, increase tire size, and explore tough terrains without sacrificing your factory ride quality, this kit is perfect for you.

Part Number: 44 - 3470/44 - 34720

Features

• For 2WD & 4WD trucks only
• TCT lower bushings maintain a precise pivot point for a factory - like ride
• Boxed steel front and rear cross - members and a full - width front skid plate are made of 3/16 - inch thick steel and allow the use of the OE front plastic gravel guard
• 1/4 - inch boxed plate steel differential drop brackets with double gussets and a boxed center rib handle front differential torsional twisting
• 3/16 - inch thick plate steel rear lift blocks
• Built - in bump stop landings and an offset pin design center the axle and keep the proper pinion angle

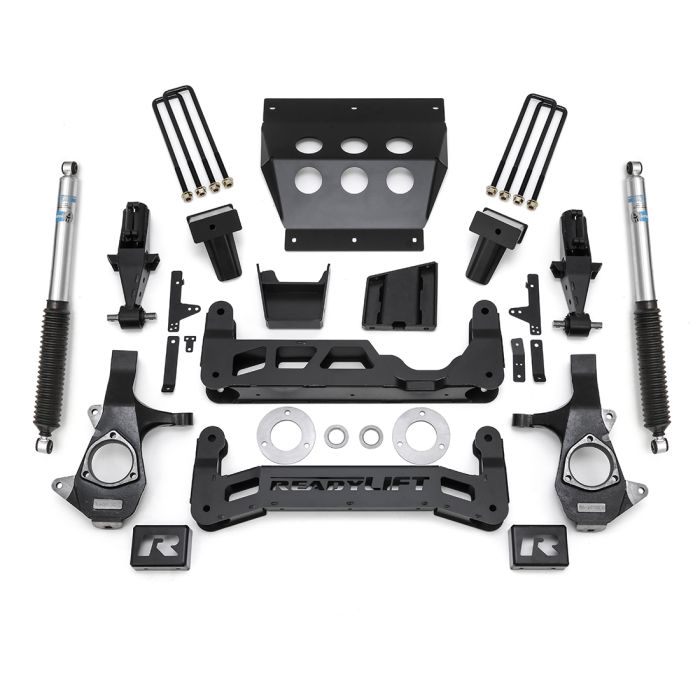

• Comes with Bilstein or Falcon 1:1 shocks

Tire Fitment:

• Max tire: 35x12.50 on a 9 - inch wide wheel with - 12 offset.

Notes

• Not for AWD trucks
• Works with trucks with or without front MagneRide

Installation

Click here for installation instructions

Using this lift kit is a great way to enhance your 2014 - 2018 GMC 1500 or Chevrolet 1500 truck's performance. First, make sure your truck is a 2WD or 4WD model as it won't work with AWD. Also, check if your truck has factory - forged steel front suspension as the kit is designed for it. When installing, click on the provided link for detailed instructions. Regarding tire fitment, the maximum tire size you can use is 35x12.50 on a 9 - inch wide wheel with - 12 offset. Maintenance is important. Regularly check the TCT lower bushings, boxed steel cross - members, differential drop brackets, and rear lift blocks for any signs of wear or damage. Keep the built - in bump stop landings clean and lubricated. And don't forget to check the Bilstein or Falcon 1:1 shocks from time to time. This kit will work whether your truck has front MagneRide or not, but always keep that in mind when using it.
