Description
Click here to customize this Kit
Fits
| Year | Make | Model | Type |
| 2001 - 2010 | Chevy / GMC | 1 Ton Truck | 4WD |
| 2001 - 2010 | Chevy / GMC | 3/4 Ton Truck | 2500 HD 4WD |
| 2001 - 2006 | Chevy / GMC | 3/4 Ton Truck | 2500 NON - HD 4WD |

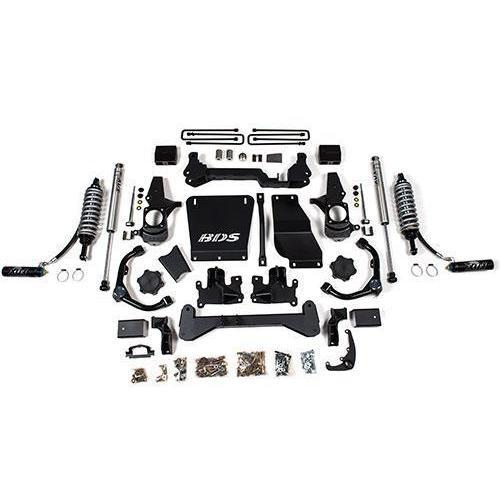

If your HD Duramax truck needs a new suspension, this BDS 4.5' Coilover conversion system is a great choice. It gets rid of torsion bars and offers a highly adjustable option. Based on the BDS high - clearance design, it provides more ground clearance, corrects suspension, steering, and driveline geometry. Paired with race - proven Fox 2.5 factory series Coilovers, it can handle rough terrains while keeping your daily drive comfortable and controllable.
Part Number: BDS740FDSC
Features
- Fox 2.5 Series Remote Reservoir Coilovers with Dual Speed Compression
- Fox 2.0 Series Shocks
- Bolt - On Brackets & Support Gusset for upper mount reinforcement
- Upgraded Upper Control Arms
- Coilover Mounting Brackets
- CNC machined ductile iron steering knuckles
- HD Front Skid Plate & Differential Skid Plate
- Multipoint differential relocation brackets to secure the differential and correct CV axle angles
- Upgraded Sway Bar Links
- 3' Rear Block Kit
- Torsion Bar Delete
- High Clearance Crossmembers
- Front Diff relocation brackets for correct CV angles
Tire & Wheel Combinations:
- 33' x 12.50' w/16 x 8 and 4 - 1/2' back spacing
- 35' x 12.50' w/17 or 18 x 9 and 5.5' back spacing
- 35' x 12.50' w/20 x 9 and 5.75' back spacing
Notes
- Torsion Bar Tool needed to load/unload torsion bars
- Some welding required
- Frame bracket and differential mount modification needed
- Traction bars won't fit standard cab/short box models and are for 4' - 8' lift vehicles
- 20' wheels with 5' - 5.75' backspacing are recommended to reduce trimming
- Narrow track knuckle slightly increases turning radius
- For tail high stance, use #119157 add - a - leaf with block kit or #069207 with leaf spring kit
- Not for Suburban / Yukon models with AutoTrac Transfer Case
- Doesn't work with rear Autoride equipped SUV's
- Fits Diesel Models Only
Installation
- Click Here For Installation Instructions
- Difficulty: 4 (where 1 = easiest and 5 = complicated)
This lift kit is for 2001 - 2010 Chevy or GMC 1 - ton and 3/4 - ton 4WD trucks, especially diesel models. To use it, first, you'll need a Torsion Bar Tool to load and unload the torsion bars. Some welding work and modifications to the frame bracket and differential mount are required during installation. Also, traction bars won't fit standard cab/short box models and are only for vehicles with a 4 - 8' lift. For tire and wheel combinations, you can choose from the options provided. To reduce trimming, it's recommended to use 20' wheels with 5 - 5.75' backspacing. If you want a tail - high stance, use the recommended add - a - leaf parts. Maintenance is important. Regularly check the brackets, shocks, and other components for any signs of wear or damage. After driving on rough terrains, clean the kit to prevent dirt and debris from causing problems. And don't forget, this kit isn't suitable for Suburban/Yukon models with AutoTrac Transfer Case or rear Autoride - equipped SUVs.
