Description

Fits

Year	Make	Model
2014 - 2016	GMC/Chevrolet	1500

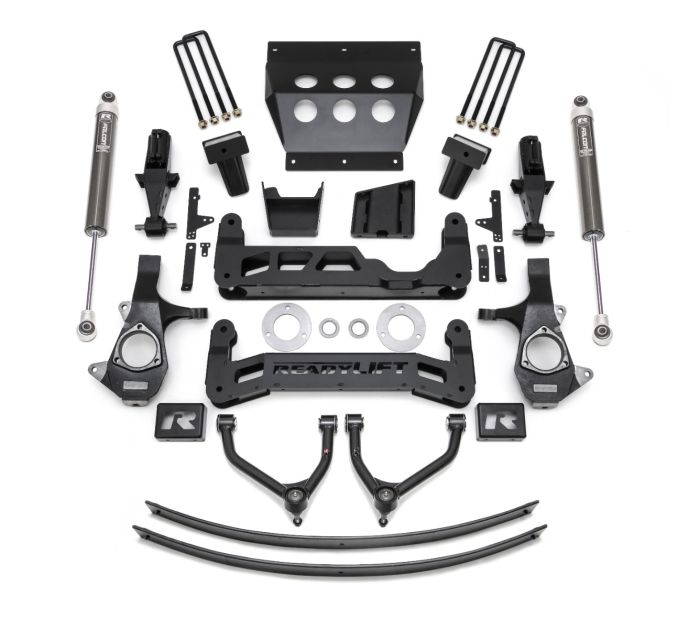

This is the ultimate big lift kit for your 1500 truck. It's designed for trucks with factory - forged steel front suspension. It keeps the factory turning radius and limits the track width increase to less than 0.5' per side. If you want to boost ground clearance, use bigger tires, and conquer tough terrains without sacrificing the factory ride quality, this kit is perfect for you.

Part Number: 44 - 34910

Features

• For 2WD & 4WD trucks only
• The 'clam - shell' style lower strut extension lets you keep using the factory struts
• TCT lower bushings provide a precise pivot point for a smooth factory - like ride
• Boxed steel front and rear cross members and a full - width front skid plate are made of thick 3/16' plate steel and allow the use of the OE front plastic gravel guard
• 1/4' boxed plate steel differential drop brackets with double gussets and a boxed center rib can handle front differential torsional twisting
• 3/16' thick plate steel rear lift blocks
• Built - in bump stop landings and an offset pin design center the axle properly and maintain the right pinion angle
• Comes with Bilstein shocks

Tire Fitment:

• Fits up to 37' tall off - road tires and needs a 9' wide wheel with - 12 offset to avoid rubbing
• Tire tread varies, and some aggressive tires may need minor trimming

Notes

• Not for AWD trucks
• Works with trucks with or without front MagneRide
• Not recommended for GMC Denali 1500 with rear MagneRide or other rear MagneRide models

Using this lift kit is a great way to enhance your 1500 truck's performance. First, make sure your truck is from 2014 - 2016 and is either a GMC or Chevrolet 1500, and it should be a 2WD or 4WD model, not AWD. When installing, follow the instructions carefully as the kit is designed to work with trucks having factory - forged steel front suspension. The 'clam - shell' style lower strut extension allows you to use the factory struts, so don't remove them if they're in good condition. For tire fitment, remember that it can fit up to 37' tall off - road tires, but you'll need a 9' wide wheel with - 12 offset to prevent rubbing. Some aggressive tires might need a little trimming. As for maintenance, regularly check the TCT lower bushings to ensure they're providing a smooth pivot point. Also, inspect the boxed steel cross members, skid plate, differential drop brackets, and rear lift blocks for any signs of wear or damage. This kit isn't recommended for GMC Denali 1500 with rear MagneRide or other models with rear MagneRide, so avoid using it on those vehicles.
