Description

Fits

Year	Make	Engine
2011 - 2016	Ford F - 250/F350	6.7L Powerstroke

Power Rating: Stock - 700HP

Preset Fuel Pressure: 60 - 65PSI

Flow Rating: 140GPH

Filter Life Expectancy: 30,000 Miles

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

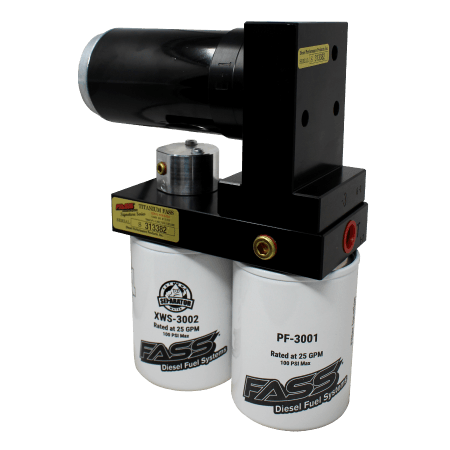

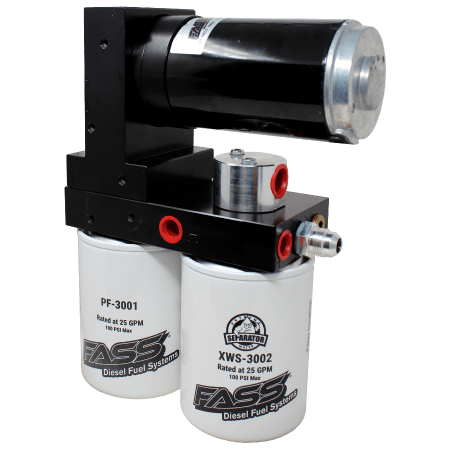

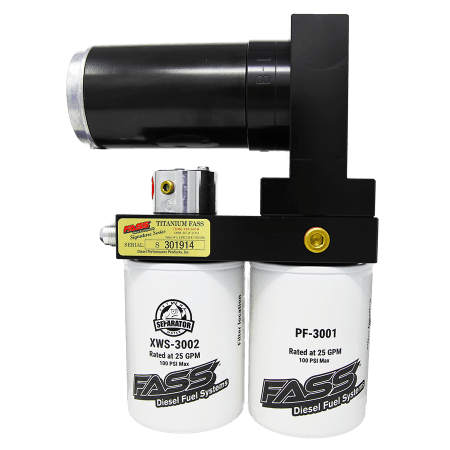

The Titanium Signature Series diesel fuel system, engineered by FASS, is the top - performing and most reliable aftermarket filtration system in the diesel industry. With a 140 - gallon - per - hour flow at 60 - 65 PSI and a limited lifetime warranty, it can fuel your Ford Powerstroke 6.7L engine from stock to 700 HP and support multiple fueling system upgrades.

This lift pump offers advanced filtration to protect your Powerstroke's injection systems, extending the life of your injection pump and injectors. It features a 2 - micron filtration rating, a built - in water separation filter, and FASS's patented air/vapor removal process. Aftermarket lift pumps are great for improving fuel economy or increasing horsepower/torque.

The kit includes a FASS (Bulkhead and Suction Tube Kit). Machined from 6061 T - 6 Billet Aluminum, the bulkhead fitting mounts directly to the factory fuel tank module, eliminating 1/4 and 1/8 tank issues when installed correctly. The PTFE Teflon pickup tube can be cut to fit different fuel tank depths, allowing you to safely operate almost to empty.

FASS perfected this system before market release, with a less than 2% motor failure rate and unique design features only found in Fass Diesel Fuel Systems.

Part Number: TSF17180F140G

Superseded Part Number: TSF17140G Previously Superseded Part Number: TS F17 140G

Features

• New Whisper Technology for quiet operation
• Easy Bolt - On Bracket Installation
• Removes water, air, and debris from diesel fuel
• Protects and extends injector life
• Improves cold - weather starts
• ½ Inch Fuel Lines and Ports
• Enhances fuel mileage
• Improves fuel volume delivery
• Ensures smoother engine idle
• Quietest motor on the market
• Limited Lifetime Warranty
• 1,000,000 - Mile Motor
• 30,000 - Mile Filter Life Expectancy

Additional Info

FASS Whisper Technology (FWT) was developed over two and a half years to meet high - quality standards. It reduces the sound of the Signature Series FASS Diesel Fuel System to a whisper while increasing fuel flow, unlike competitors that reduce flow to cut noise.

Bolt - On Bracket Mounts simplify installation. They use your Ford Super Duty factory bed bolt, so mounting the Titanium Series lift pump takes just minutes. The brackets are made of machined steel for strength.

FASS Fuel Systems are great for daily drivers and high - performance use. The added filtration and air/vapor removal enhance the fuel injection system's life and improve engine performance in various aspects, including cold - weather operation with fuel heating options.

Performance Radius Cuts (PRC) improve fuel flow in the FASS System. They prevent air and vapor re - entry and eddy currents. FASS Titanium Signature Fuel Systems are the only ones with these exclusive cuts, while competitors' fittings may limit flow.

Videos

Using this lift pump is straightforward. First, make sure to install it correctly using the included Bolt - On Bracket Mounts. It's designed to use your Ford Super Duty factory bed bolt, so mounting takes just a few minutes. The PTFE Teflon pickup tube can be cut to fit the depth of your fuel tank. Once installed, the pump will start delivering fuel at the preset pressure of 60 - 65 PSI and a flow rate of 140GPH. When it comes to maintenance, the filter has a life expectancy of 30,000 miles. Replace it regularly to keep the system working at its best. Also, keep an eye on the fuel pressure and flow rate. If you notice any changes, it could be a sign of an issue. The pump has a limited lifetime warranty, but it's always a good idea to follow proper installation and maintenance procedures to ensure its long - term performance. In cold weather, if your pump is equipped with FASS fuel heating options, it will help with smoother starts. Overall, this lift pump is a great addition to your Ford Powerstroke 6.7L engine, offering better fuel economy, increased horsepower, and a longer - lasting fuel injection system.
