Description

Fits

Year	Make	Engine
2005 - 2018	Dodge/RAM	5.9L / 6.7L Cummins
2021 - 2023	Dodge/RAM	6.7L Cummins

Power Rating: 1000HP - 1200HP

Preset Fuel Pressure: 16 - 18PSI

Flow Rating: 250GPH

Filter Life Expectancy: 30,000 Miles

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

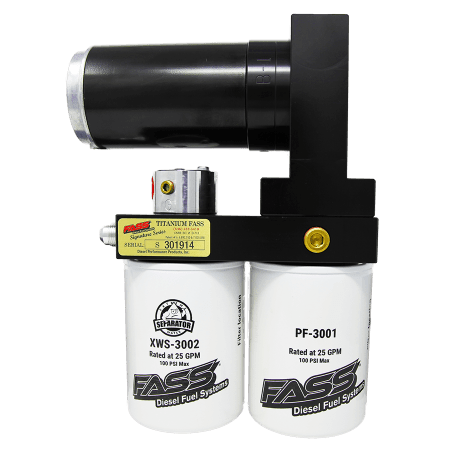

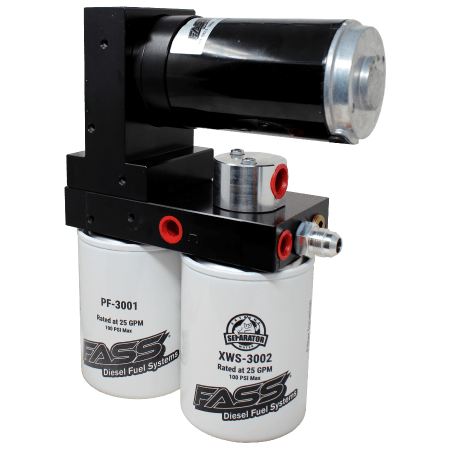

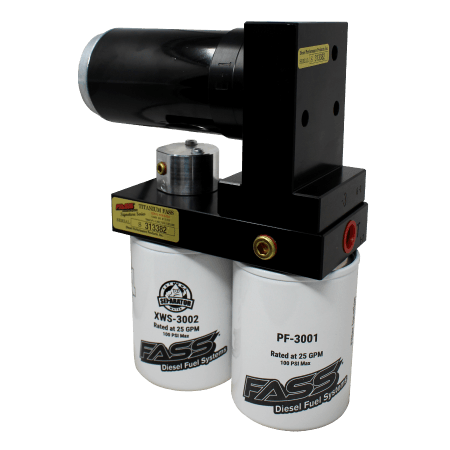

The Titanium Series diesel fuel lift pump by FASS Fuel Systems is a top - notch aftermarket filtration system. With a 250 - gallon - per - hour rating and a limited lifetime warranty, it can fuel multiple aggressive upgrades for your Dodge Cummins 5.9L and 6.7L diesel engines, perfect for competition.

This lift pump offers advanced filtration. It protects your injection systems, extends the life of Bosch Injection Pumps and Diesel Injectors. Its benefits include 2 - micron filtration, a built - in water separation filter, and a patented air/vapor removal process. It's great for daily drivers and high - performance vehicles, improving fuel economy and increasing horsepower/torque.

The kit includes two FASS components (Bulkhead and Suction Tube Kit). The Bulkhead fittings, machined from 6061 T - 6 Billet Aluminum, work as suction and return tubes. This improved version allows direct plumbing to the fuel tank module, eliminating filler neck cutting and speeding up installation. The PTFE Teflon pickup tube can be easily cut for different fuel tank depths. You can safely run down to below 1/8 tank when properly installed.

FASS has perfected this system, with a less than 2% motor failure rate and unique design features.

Part Number: TSD07250G

Superseded Part Number: TS D07 250G

Features

• New Whisper Technology
• New Bolt On Bracket Installation
• Removes water, air, and debris from diesel fuel
• Protects and extends injector life
• Improves cold - weather starts
• ½ Inch fuel lines and ports
• Improves fuel mileage
• Enhances fuel volume delivery
• Ensures smoother engine idle
• Quietest motor on the market
• Limited Lifetime Warranty
• 1,000,000 - mile motor
• 30,000 - mile filter life expectancy

Additional Info

FASS Whisper Technology (FWT) was developed over two and a half years to meet high - quality standards. It reduces the sound of the Signature Series FASS Diesel Fuel System to a whisper while increasing fuel flow, unlike competitors who reduce flow to cut noise.

Performance Radius Cuts (PRC) are an advanced machining technique. They improve fuel flow in the FASS System, prevent air and vapor re - entry, and stop eddy currents. FASS Titanium Signature Fuel Systems are the only ones with these cuts, while competitors' fittings can limit flow and reintroduce air.

Mass Flow Return (MFR) technology polishes your fuel. It keeps positive pressure on the fuel to prevent cavitation and then returns unneeded fuel to the tank after filtration, ensuring clean fuel. Combined with optional FASS Fuel Heaters, it helps in extreme cold weather.

Bolt - On Bracket Mounts simplify pump installation. Old styles required drilling or welding, but these new brackets use the Dodge Cummins factory bed bolt, taking only minutes to install and providing strong support.

Notes

• For 19 - 20 Cummins trucks with or going in for the CP3 recall, D12RK1001 is needed to correctly plumb the Fass feed line.

Videos

Using this Cummins Titanium Signature 250GPH Lift Pump is straightforward. First, make sure to use the included Bulkhead and Suction Tube Kit for installation. You can easily connect the FASS suction and return lines directly to the bulkhead fitting on the fuel tank module. The pickup tube can be cut to fit different fuel tank depths. For 2019 - 2020 Cummins trucks with or going for the CP3 recall, you'll need the D12RK1001 fittings to plumb the feed line correctly. When it comes to maintenance, the filter has a life expectancy of 30,000 miles, so remember to replace it regularly. The motor is rated for 1,000,000 miles, but if you notice any unusual noises or a drop in performance, check it out. Also, take advantage of the limited lifetime warranty. In cold weather, consider using the optional FASS Fuel Heater to ensure smooth operation. Always keep an eye on the fuel pressure and flow rate to make sure the pump is working as it should.
