Description
Fits
| Year | Make | Model | Engine |
| 2015 - 2016 | GM | 2500/3500 | 6.6L Duramax |
Power Rating: 600 - 1000HP
Preset Fuel Pressure: 8 - 10PSI
Flow Rating: 165GPH
Filter Life Expectancy: 30,000 Miles
Filtration Rating: 2 Micron
Warranty: Limited Lifetime Warranty
Upgrade your 2015 - 2016 Duramax engine significantly! The factory - built Duramax engine lacks a lift pump. Instead, the CP4 injection pump pulls fuel under vacuum, causing unnecessary wear. The FASS pump solves this problem, fueling your engine properly and efficiently.

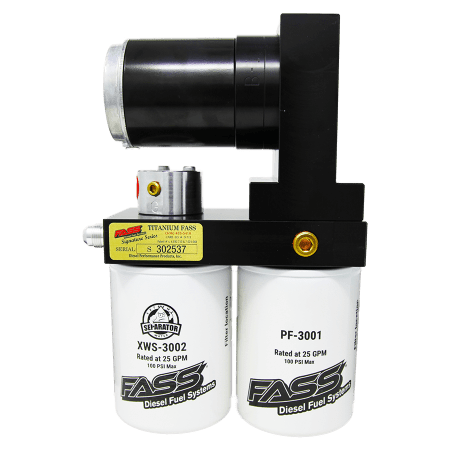

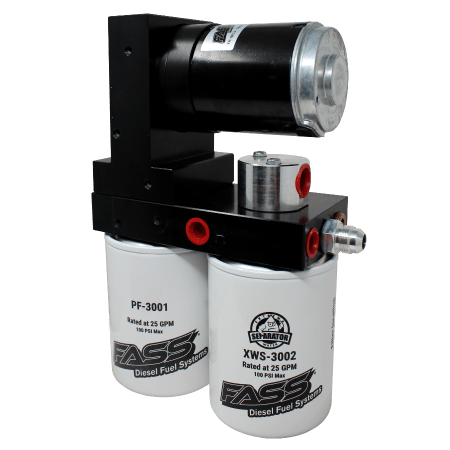

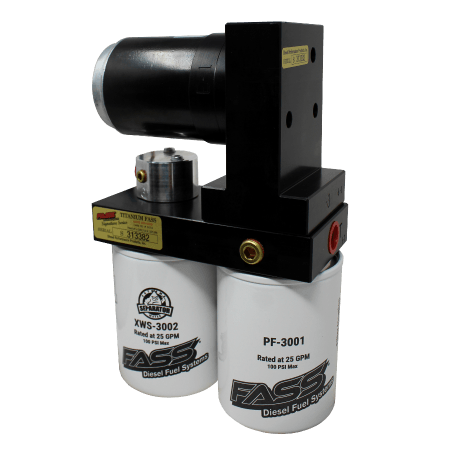

A Titanium Signature Series System offers advanced filtration. It protects your Duramax’s injection systems, extends the life of injectors, and has a 2 - micron filtration rating, a built - in water separation filter, and a patented air/vapor removal process.
FASS perfected this system before market release. It has a less than 2% motor failure rate and unique design features only available with Fass Diesel Fuel Systems.
Part Number: TSC12165G
Superseded Part Number: TS C12 165G
Features
- Complete Replacement Pump
- Removes Water, Air, and Debris From Diesel Fuel
- Improves Cold Weather Starts
- ½ Inch Fuel Lines and Ports
- Fuel Mileage Improvement & Improved Volume Delivery
- Smoother Engine Idle
- Quietest Motor On The Market
- Limited Lifetime Warranty
- 1,000,000 Mile Motor
- 30,000 Mile Filter Life Expectancy
Installation
Additional Info
FASS Whisper Technology (FWT) was developed for over two and a half years to meet high - quality standards. It reduces the sound of the Signature Series to a “whisper” while increasing fuel flow, unlike competitors that reduce flow to cut noise.
Mass Flow Return (MFR) technology polishes your fuel. It maintains positive pressure to prevent cavitation, then returns unneeded fuel to the tank after filtration. Combined with optional fuel heaters, it ensures cold - weather operation.
Performance Radius Cuts (PRC) are advanced machining that improves fuel flow in the FASS System. It prevents air and vapor re - entry and eddy currents. FASS Titanium Signature Fuel Systems are the only ones with these cuts, unlike competitors with fittings that can limit flow.
On Bracket Mounts simplify installation. No more drilling or welding. Just use the factory bed bolt. All brackets are machined steel for strength.
Videos
Using your 2015 - 2016 Duramax Titanium Signature 165GPH Lift Pump is straightforward. First, install it using the new bolt - on brackets that utilize your factory bed bolt. This takes only a few minutes. Once installed, the pump will start working to fuel your engine properly and efficiently. When it comes to cold weather starts, the pump's design helps improve the starting process. As for maintenance, the filter has a life expectancy of 30,000 miles. So, make sure to replace the filter around that mileage to keep the pump working at its best. Also, the pump comes with a limited lifetime warranty, so if you encounter any issues, you can rely on the warranty for support. The FASS Whisper Technology makes the pump quiet, and you don't have to worry about it disturbing you while the engine is running. Just enjoy the smoother engine idle, improved fuel mileage, and better volume delivery that this pump provides.
