Description

Fits

Year	Make	Model	Engine
1999 - 2007	Ford	F - 250/F - 350	7.3L / 6.0L Powerstroke

Power Rating: 600 - 900HP

Preset Fuel Pressure: 60 - 65 PSI

Flow Rating: 220GPH

Filter Life Expectancy: 30,000 Miles

Filtration Rating: 2 Micron

Warranty: Limited Lifetime Warranty

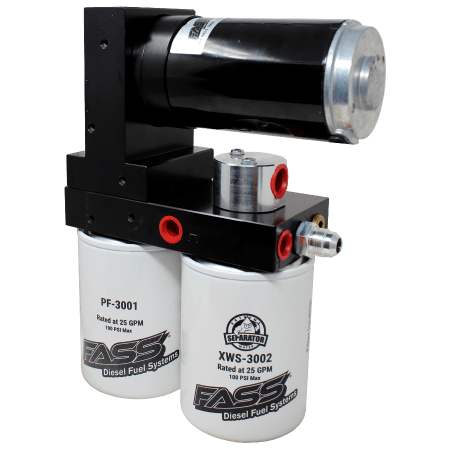

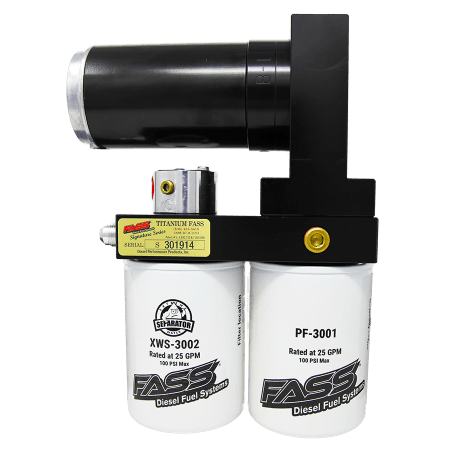

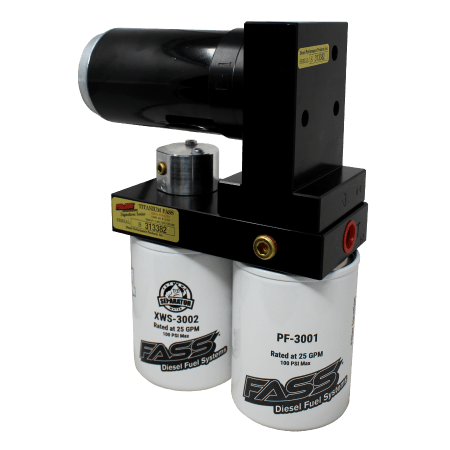

The Titanium Signature Series diesel fuel system by FASS Diesel Fuel Systems is a top - notch aftermarket filtration solution. With a 220 GPH flow rate at 60 - 65 PSI and a limited lifetime warranty, it provides sufficient fuel for 600 - 900 HP upgrades in your Ford Powerstroke 7.3L and 6.0L diesel engines.

This fuel system offers advanced filtration. It has a 2 - micron filtration rating, a built - in water separation filter, and FASS's patented air/vapor removal process. It protects your Powerstroke's injection systems and extends the life of your diesel injectors, solving common injector failure issues related to fuel.

Part Number: TSF14250F220G

Superseded Part Number: TSF14220G
Previously Superseded Part Number: TS F14 220G

Features

• New Whisper Technology for quiet operation
• Comes with Bulkhead & Suction Tube Kit
• Easy Bolt On Bracket Installation
• Removes water, air, and debris from diesel fuel
• Protects and extends injector life
• Improves cold - weather starts
• ½ Inch Fuel Lines and Ports
• Enhances fuel mileage
• Improves fuel volume delivery
• Ensures smoother engine idle
• Has the quietest motor on the market
• Backed by a limited lifetime warranty
• 1,000,000 - Mile Motor
• 30,000 - Mile Filter Life Expectancy

Additional Info

FASS Whisper Technology (FWT) was developed over two and a half years to meet high - quality standards. It reduces sound levels while increasing fuel flow, unlike competitors that reduce flow to cut noise.

Bolt On Bracket Mounts simplify installation. They use your Ford Super Duty factory bed bolt, and all brackets are made of machined steel for strength.

FASS Fuel Systems benefit both daily drivers and high - performance users. The added filtration and air/vapor removal enhance fuel injection system life and improve various engine aspects, including cold - weather performance with heating options.

Performance Radius Cuts (PRC) in the FASS System improve fuel flow. They prevent air and vapor re - entry and eddy currents, unlike inferior fittings used by competitors.

Videos

Using the Titanium Signature Series 220GPH Lift Pump is straightforward. First, locate a suitable spot under your Ford F - 250 or F - 350's bed and use the provided bolt - on brackets to mount the pump. It uses the factory bed bolt, so you don't need to drill or weld. Connect the ½ - inch fuel lines and ports to your engine's fuel system. Once installed, the pump will start working to deliver fuel at the preset 60 - 65 PSI and 220 GPH flow rate. For cold - weather starts, the pump will help improve the engine's performance. Just turn the key and let the pump do its job. When it comes to maintenance, keep an eye on the filter. The filter has a life expectancy of 30,000 miles. Replace it when you reach this mileage to ensure the best performance. Also, note that the motor is designed to last 1,000,000 miles, but if you notice any unusual noises or reduced performance, it might be a sign to check the system. This pump is backed by a limited lifetime warranty, so if you have any major issues, contact the manufacturer.
