Description

Fits: This lift kit is specifically designed for Toyota Tacoma models from 2005 to 2015.

The secret behind this kit's outstanding performance lies in ReadyLifts' exclusive HD top - mount offset strut extensions, which can achieve a real 6 - inch front lift. The precisely engineered cast - iron lift knuckles ensure perfect alignment geometry during the entire suspension cycle. Also, by retaining the factory sway - bar mounting locations, it significantly enhances handling and overall driving experience.

Part Number: 44 - 5560

Features

• Works for both 2WD and 4WD Tacomas.
• Provides a true complete 6 - inch lift for both the front and rear.
• Comes with Bilstein 5100 Rear Shocks for better shock absorption.
• Has increased front spring rates to improve stopping and turning performance.

Tire Fitment: You can use 35x12.50 tires on a 9 - inch wide wheel with offsets of +12, 0, or - 18. A minimum wheel diameter of 18 inches is required.

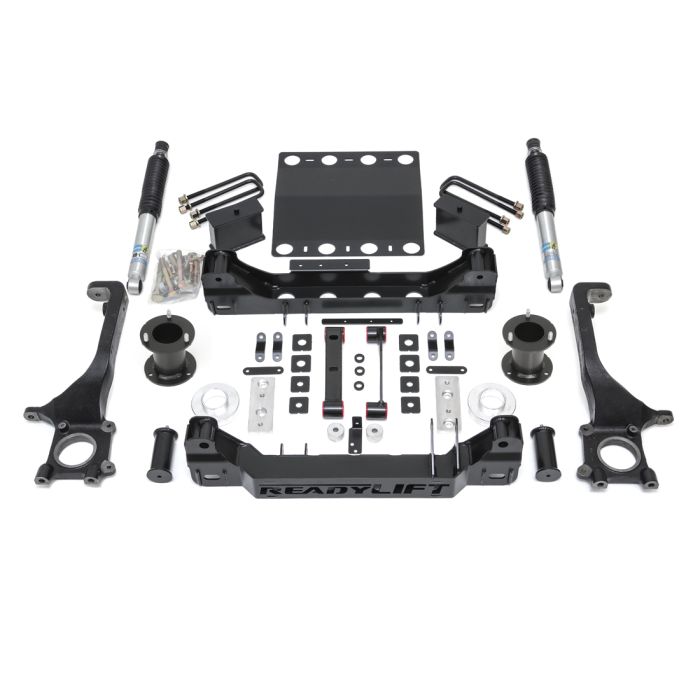

Additional Info

• Front and rear laser - cut CNC - machined cross members for strength.
• Top - mount strut extensions for lift.
• Cast - iron lift knuckles for alignment.
• Bump - stop extensions for safety.
• Sway - bar drop spacers for stability.
• Differential drop assemblies for proper drivetrain angles.
• Brake - line brackets for secure brake lines.
• 4 - inch tall rear lift blocks with longer u - bolts for rear lift.
• HD skid plate for underbody protection.
• Bilstein 5100 series rear shocks for a smooth ride.

Notes

• Do not use this kit on 5 - lug, TRD Pro, TX Baja, or XSP - X models.

Installation

Click here to view installation instructions

Using this lift kit for your 2005 - 2015 Toyota Tacoma is a great way to enhance its performance and appearance. First, make sure your Tacoma is not a 5 - lug, TRD Pro, TX Baja, or XSP - X model as this kit is not suitable for them. When it comes to tire fitment, use 35x12.50 tires on a 9 - inch wide wheel with offsets of +12, 0, or - 18, and ensure the wheel diameter is at least 18 inches. For installation, click on the provided link to view detailed instructions. It's a good idea to have some basic mechanical knowledge or get help from a professional. As for maintenance, regularly check the lift components such as the cast - iron lift knuckles, sway - bar drop spacers, and brake - line brackets for any signs of wear or damage. Keep the HD skid plate clean to prevent rust. Also, inspect the Bilstein 5100 rear shocks from time to time to ensure they are working properly. By following these steps, you can enjoy a smooth and safe driving experience with your lifted Tacoma.
