Description
Fits
| Year | Make | Model | Engine |
| 2000 - 2005 | Ford | Excursion | 6.0L/7.3L Powerstroke |

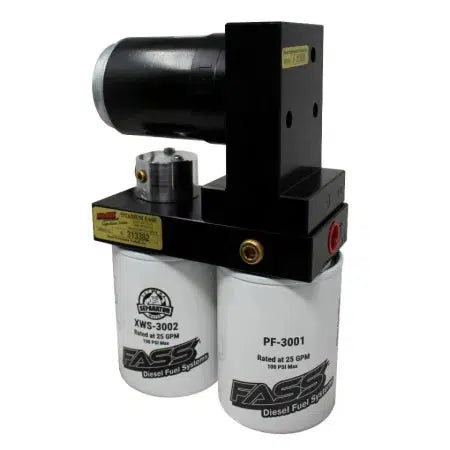

Boost your Powerstroke diesel engine's performance with the top - rated FASS Diesel Fuel Systems Titanium Signature Series 240GPH Lift Pump. It can supply fuel for 900 - 1200 HP engines. With a 2 - micron filtration rating, built - in water separation, and patented air/vapor removal, it offers excellent protection. Backed by a lifetime warranty!
The kit includes a 6061 T - 6 Billet Aluminum Bulkhead & Suction Tube. Connect your return line directly to the new Bulkhead, no need to adjust the filler neck. The Bulkhead fitting serves as both suction and return, with a 5/8” Suction Tube and ½” Fuel Return Port. The PTFE Teflon pickup tube adjusts to different fuel tank depths and can operate safely up to 1/8 tank.
Choose FASS for a high - quality fuel system! It has a motor failure rate of less than 2%. Part Number: TSF15290F240G
Features
- New Whisper Technology for quiet operation
- Easy Bolt - On Bracket Installation
- Preset 60 - 65 PSI Fuel Pressure
- Complete Replacement System
- 220 Gallons Per Hour Flow Rating
- Removes water, air, and debris from diesel fuel
- 2 Micron Filtration to protect injectors
- Improves cold - weather starts
- Reduces carbon emissions
- Enhances fuel mileage and volume delivery
- Ensures smoother engine idle
- Optional Electric Heater and Fuel Pressure Gauge Ports
- Limited Lifetime Warranty
- 1,000,000 Mile Motor
- 30,000 Mile Filter Life Expectancy
- Quietest motor on the market
Notes
- Installation on a cab and chassis may need modifications.
Additional Info
- FASS Whisper Technology (FWT) was developed over two and a half years to meet high - quality standards. It reduces noise while increasing fuel flow, unlike competitors.
- Performance Radius Cuts (PRC) improve fuel flow in the FASS System, preventing air re - entry and eddy currents. Exclusive to FASS Titanium Signature Fuel Systems.
- Mass Flow Return (MFR) technology keeps fuel clean by maintaining positive pressure and returning filtered fuel to the tank. Works well with optional fuel heaters in cold weather.
- Bolt On Bracket Mounts simplify installation using Ford Super Duty factory bed bolts. All brackets are made of machined steel for strength.
Video
Using this lift pump is easy. First, make sure your vehicle is the right model (2000 - 2005 Ford Excursion with 6.0L/7.3L Powerstroke engine). If you're installing it on a cab and chassis, be aware that you might need to make some modifications. Install the lift pump using the provided bolt - on bracket that utilizes your Ford Super Duty factory bed bolt. Connect the return line directly to the 6061 T - 6 Billet Aluminum Bulkhead. The PTFE Teflon pickup tube can be adjusted to fit the depth of your fuel tank, and the pump can operate safely up to 1/8 tank. As for maintenance, the filter has an expected life of 30,000 miles, so remember to replace it regularly. The motor is rated for 1,000,000 miles, but if you notice any unusual noise or performance issues, it might be a sign of a problem. Enjoy the benefits of improved fuel flow, reduced emissions, and better engine performance with this high - quality lift pump.
