Description
Fits
| Year | Make | Model | Engine |
| 2008 - 2010 | Ford | F - 450 | 6.4L Powerstroke |
Note: Suitable for all trucks, even those with 5th wheel hitches. Works for both gas and diesel applications.

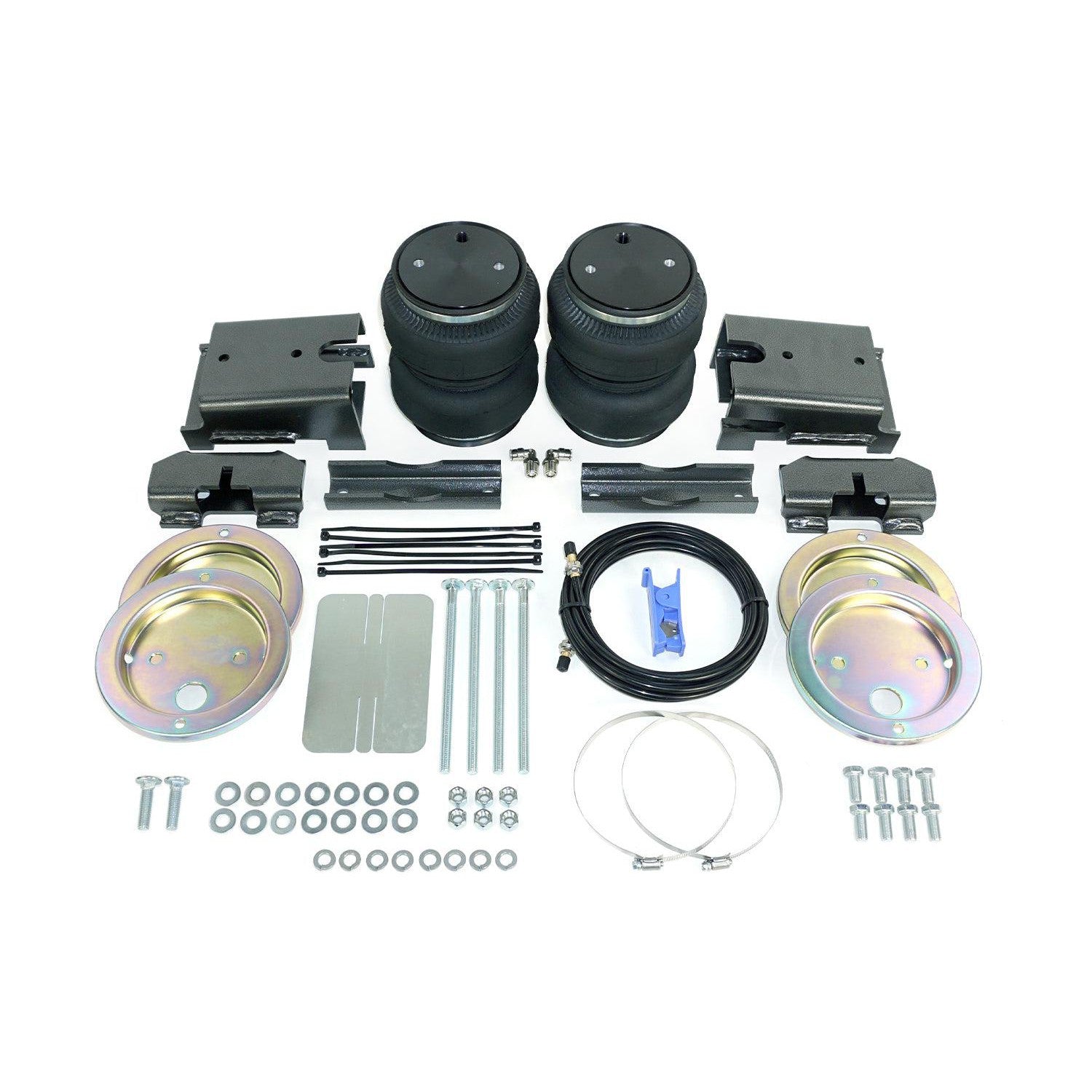

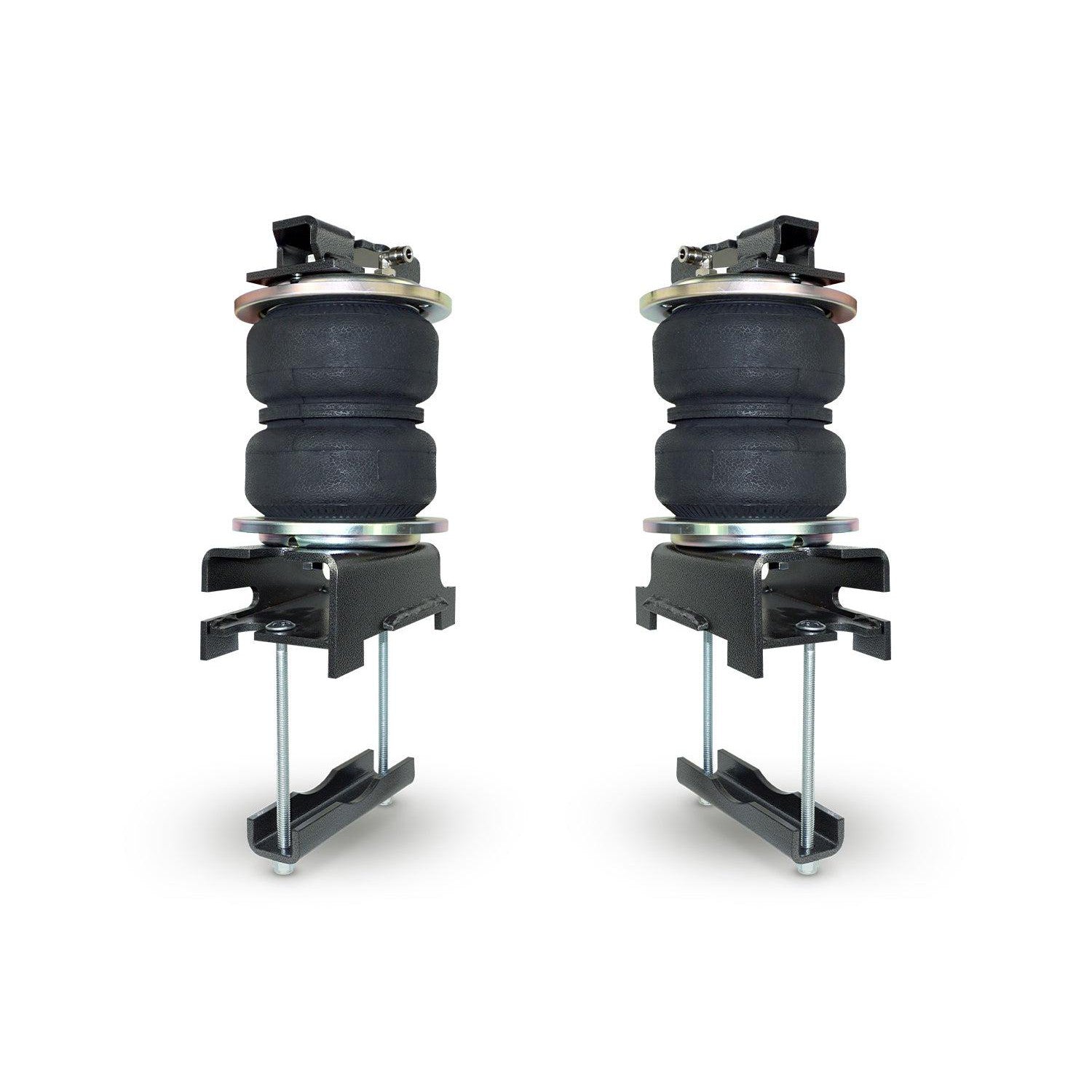

Tired of truck sag, sway, and bottoming out? Say goodbye to these issues with Pacbrake's ALPHA HD PRO! These air bags/air helper springs, complete with Jounce Bumpers/Bump Stops, have 1 - inch - thick corrosion - resistant end caps and 20 support wires for maximum strength and durability.

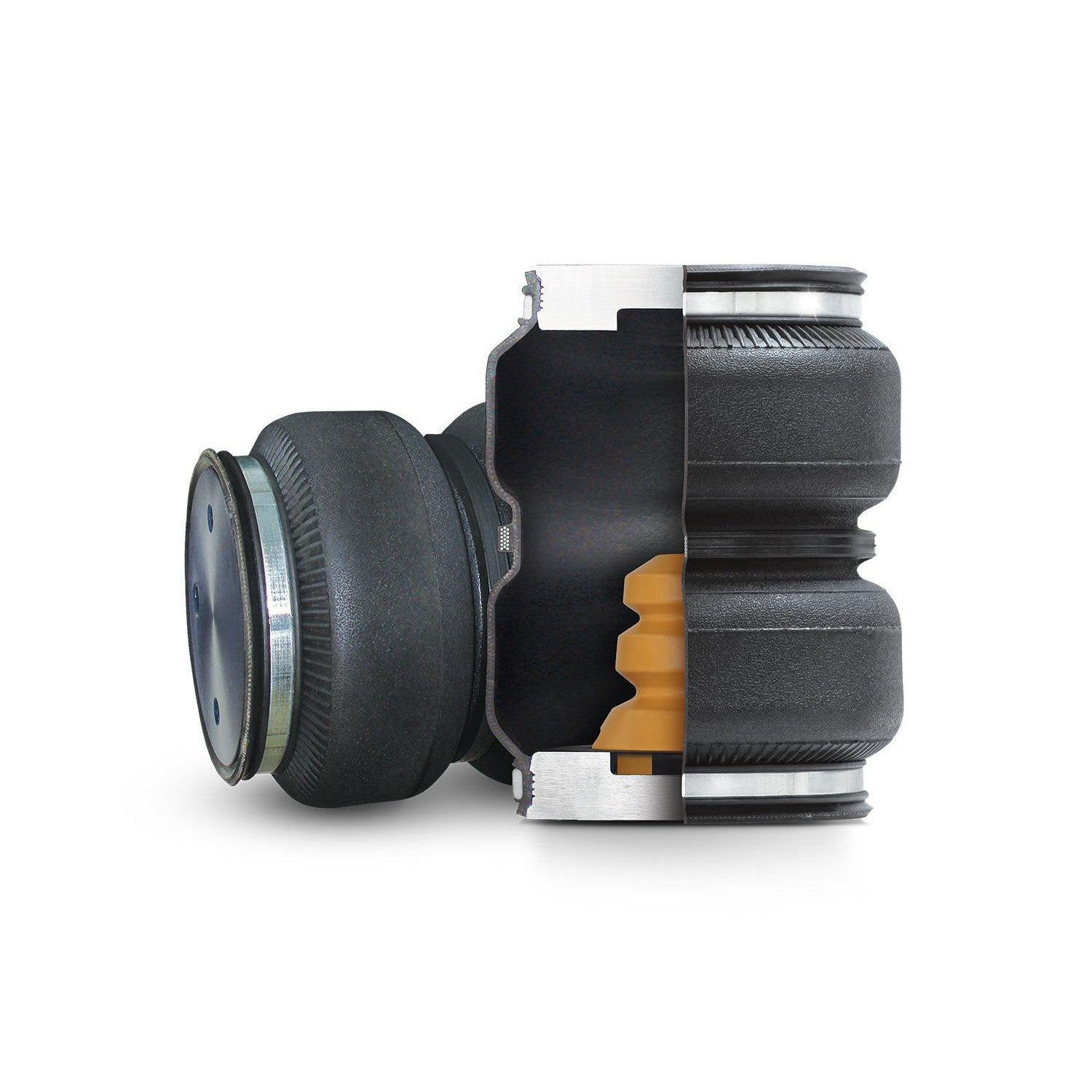

The kit has a bouncy polyurethane bumper inside the bag to prevent damages from bottoming out. It's great for those who want an internal bumper for peace of mind and enjoy a comfortable ride without air when not towing.
Customers can choose to buy a Pacbrake air suspension kit with or without an in - bag bump stop.
Why Pacbrake added a bump stop to their bags
Peace of mind. Customers want a bump stop to avoid bottoming out due to loss of air bag pressure, a rare event that could damage the air bags or the truck frame. Think of it as an 'insurance policy' against bottoming out.
An extra benefit is that you can run these air bags at 0 psi when unloaded for a better ride.
Are bump stops necessary?
No! For those who need maximum travel in their air bags, like raising and lowering the rear end to pick up trailers or boats, or for off - roading, air bags without bump stops are recommended. Consider the HP100187 ALPHA HD air bag.
Part Number: HP10187 - J
Features
- 5,000 lbs of load - leveling capacity
- 4 - hour install time
- Lifetime warranty
- Can be run at 0 psi
Installation
Notes
- Never exceed the manufacturer's recommended Gross Vehicle Weight Rating.
Videos
This Pacbrake air suspension kit is designed for 2008 - 2010 Ford F - 450 trucks with a 6.4L Powerstroke engine. It can also be used on all trucks, including those with 5th wheel hitches, and works for both gas and diesel applications. To install, it takes about 4 hours. Just click on the installation link provided in the product description. When using the kit, you have the option to run the air bags at 0 psi when the truck is unloaded for a more comfortable ride. You can also choose between the kit with or without an in - bag bump stop. If you need maximum travel for raising and lowering the rear end to pick up trailers or boats, or for off - roading, go for the air bags without bump stops. However, if you want extra protection against bottoming out due to a rare loss of air bag pressure, choose the kit with the bump stop. Remember, never exceed the manufacturer's recommended Gross Vehicle Weight Rating. The kit has a 5,000 lbs load - leveling capacity and comes with a lifetime warranty. Keep it in good condition by regularly checking the air bags and the corrosion - resistant end caps for any signs of damage.
