Description
Fits
| Year | Make | Model |
| 2007 - 2024 | Mercedes | Sprinter 3500XD/4500 2WD/4WD DRW |
Note: Won't fit SRW vehicles, E - Sprinter models, or models with ride height sensors. Fits both Gas/Diesel applications.
Tired of truck sag, sway, and bottoming out? The Pacbrake ALPHA HD PRO is the solution! These air bags with Jounce Bumpers come with 1 - inch thick corrosion - resistant end caps and 20 support wires for great strength and durability.

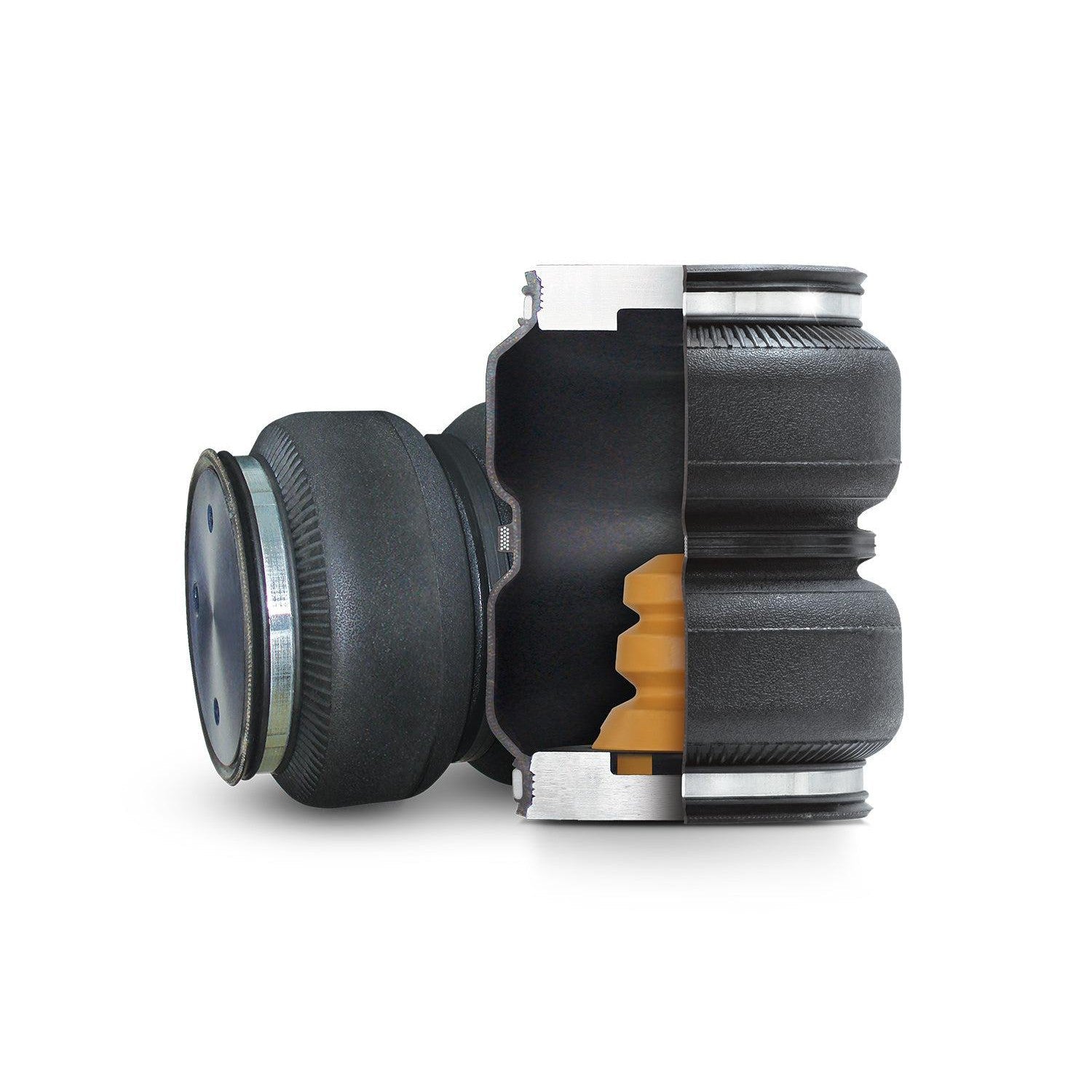

The kit has a bouncy polyurethane bumper in the bag to prevent damages from bottoming out. It's perfect for those who want an internal bumper and enjoy a comfortable ride without air when not towing.
Customers can choose a Pacbrake air suspension kit with or without an in - bag bump stop.
Why Pacbrake added a bump stop
Peace of mind. A bump stop prevents bottoming out due to loss of air bag pressure, a rare event that could damage the air bags or truck frame. It's like an 'insurance policy' against bottoming out.
You can run these air bags at 0 psi when unloaded for a more comfortable ride.
Are bump stops necessary?
No! For those who need maximum air bag travel, like when picking up trailers or boats, or for off - roading, air bags without bump stops are recommended. Consider the HP10391 ALPHA HD air bag.
Part Number: HP10391 - J
Features
- 5,000 lbs of load - leveling capacity
- 2 - hour install time
- Lifetime warranty
- Can be run at 0 psi
Installation
Notes
- Never exceed the manufacturer's recommended Gross Vehicle Weight Rating.
Videos
This Pacbrake air suspension kit is designed for 2007 - 2024 Mercedes Sprinter 3500XD/4500 2WD/4WD DRW models. To install it, it should take about 2 hours. Just click on the provided link for detailed installation instructions. When using the kit, you have a choice of getting it with or without a bump stop. If you want extra protection against bottoming out and peace of mind, go for the one with a bump stop. You can run the air bags at 0 psi when the truck is unloaded for a super comfortable ride. But remember, never go over the manufacturer's recommended Gross Vehicle Weight Rating. As for maintenance, since it comes with a lifetime warranty, Pacbrake has you covered. However, it's a good idea to regularly check the air bags and end caps for any signs of wear or damage, especially if you use your truck for heavy - duty tasks or off - roading.
