Description

Fits

Year	Make	Model	Engine
2020 - 2021	Ford F - Series	Superduty	6.7L Powerstroke

AM Diesel Performance (AMDP) has unlocked the ECM in 2020 Ford trucks. These custom - tuned files, rigorously tested by AMDP, bring amazing power boosts, better mileage, and overall efficiency. They're written just for your truck and need ECM removal for a bench flash. Here's the process below.

Included

Option	Includes
Single Tune	Bench Flash ECM
Single Tune + Add TCM	Bench Flash ECM + MPVI3 w/ 4 Credits
All Tunes	Bench Flash ECM
All Tunes + Add TCM	Bench Flash ECM + MPVI3 w/ 4 Credits

Tuning

Emissions	Level 1	Level 2	Level 3	Level 4	Level 5
ON	0HP	50HP	75HP	100HP
OFF	0HP	50HP	75HP	100HP	150HP

Note: If you pick a single tune, tell us your preferred tune level in the notes above.

Low Boost Fueling vs Standard Fueling

Low Boost makes your truck more responsive but creates more smoke when accelerating. Let us know your choice in the order notes.

Rumble vs Hiss Idle

For now, you can only choose one idle sound for all tunes. Mention your preference in the order notes.

TCM Tuning

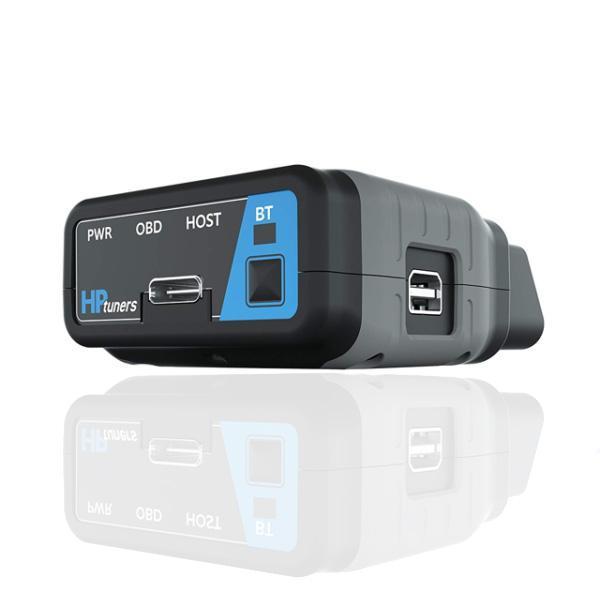

If you're using 35' or larger tires on your 2020+ Superduty, TCM Tuning is a great idea. It needs an extra device from HPTuners (MPVI2 or MPVI3) and 4 credits. You can add it in the options above.

TCM Tuning Features:

• Good for 35' or larger tires
• Higher shift points
• More line pressure
• Shift pressure adjustment
• Torque converter lock - up
• Click here to view TCM Tuning Instructions

Installation

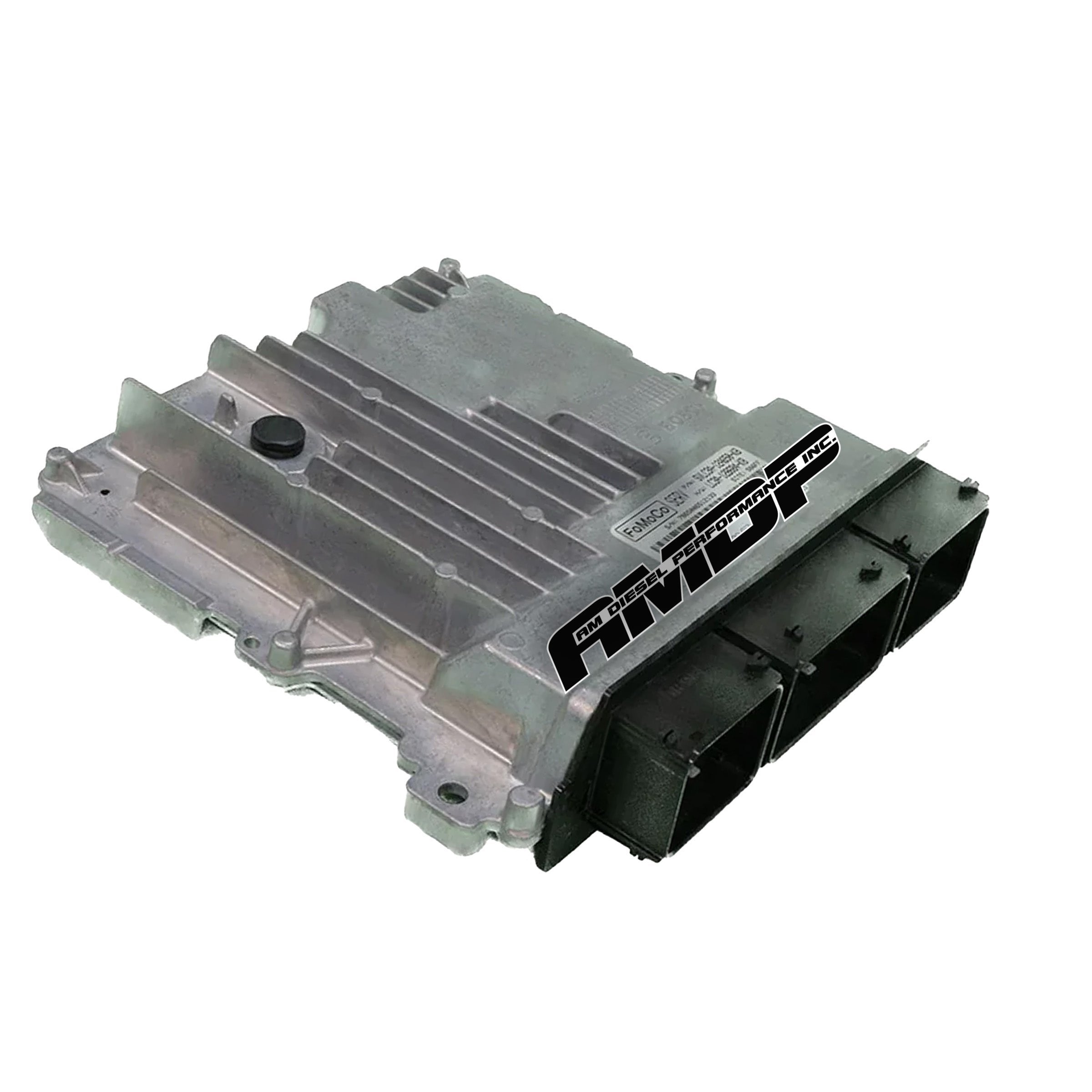

To tune your 2020+ Superduty, we need the ECM at our shop. You'll have to remove it from your truck and send it to us. Your truck won't work during this time. We'll use Purolator to send it back fast.

How to Remove your ECM

1. Clear all codes, even if there are none. It's important for the tunes to work.
2. After clearing codes, take out the key and disconnect the battery.
3. Remove the ECM.
4. Send the ECM to us with tracking.
5. We'll write your tunes and send it back with any extra hardware within a day of receiving the ECM.

USA Customers: Send the ECM as a REPAIR to avoid border fees.

Using this product is a great way to enhance your 2020 - 2021 Ford Superduty with a 6.7L Powerstroke engine. First, you need to decide on your tune options. You can choose a single tune or all tunes, and decide whether to add TCM Tuning if you're using 35' or larger tires. When it comes to fueling, low boost makes the truck more responsive but creates more smoke. Also, pick your preferred idle sound. Now, for installation, you have to remove the ECM from your truck. Start by clearing all the codes, then take out the key and disconnect the battery. Remove the ECM and send it to us with tracking. USA customers should send it as a repair to avoid extra fees. We'll write the tunes and send it back with any additional hardware within a day. Your truck won't be useable during this time. For maintenance, there aren't any special steps, but always make sure the ECM is handled carefully during shipping and installation. And if you choose TCM Tuning, refer to the instructions to make the most of its features.
