Description

Fits

Year	Make	Engine
2011 - 2015	GMC/Chevrolet	6.6L Duramax

Extend the lifespan of your Duramax 6.6L diesel engine with our Water Coolant Filter Bypass System. By removing contaminants like casting sand and metal shavings from the manufacturing process, it ensures your water pump and EGR cooler last longer. This kit filters a small amount of coolant while your Chevy/GMC Duramax engine is running.

The filter head, made of CNC - machined billet 6061 aluminum with anodized construction, attaches to a supplied bracket that mounts in the factory holes where a secondary alternator was located. It has 2 threaded inlet ports and 1 outlet port. The kit comes with all necessary fittings. The pre - assembled silicone hose fittings offer simple, leak - proof connections and are factory - tested at twice the recommended radiator cap pressure.

Part Number: SD - COOLFIL - 6.6 - 11 - W

Features

• Constructed with an aluminum filter block and silicone hose
• CNC - machined product design
• Provides cleaner coolant for a longer - lasting engine

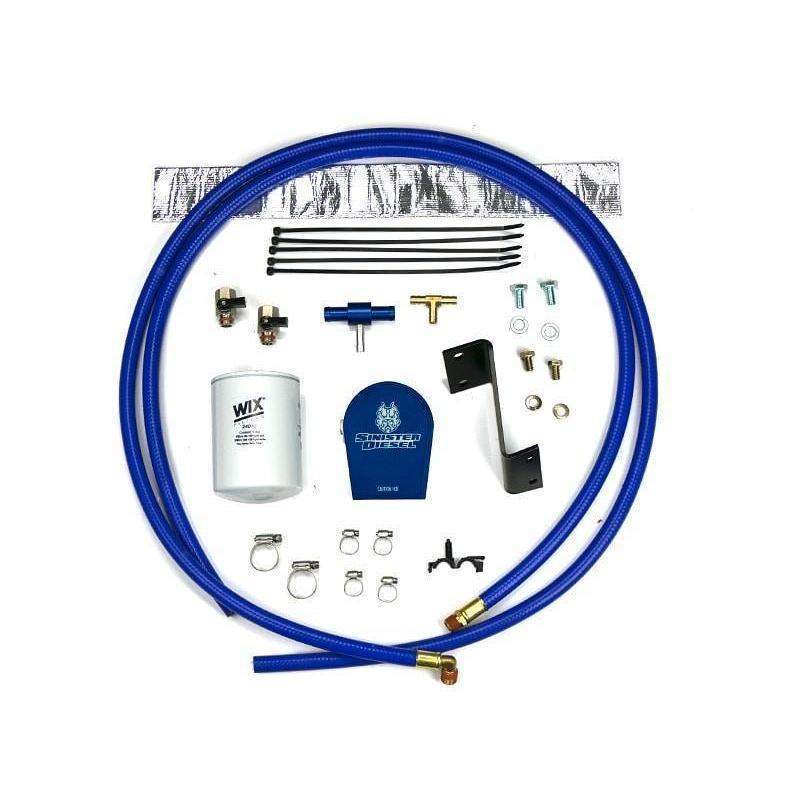

• Kit includes coolant filter, filter block, mounting bracket, and all installation hardware
• Recommended tools: 10mm deep socket and ratchet, 11/16 open - end wrench, large adjustable wrench, regular screwdriver, utility knife, and diagonal cutters
• No drilling required
• Mounting bracket fits into factory holes

Notes

• Replace the first filter at 500 miles.
• Replace the second and third filters at 3,000 miles each.
• After 3 filter changes, replace the filter once a year.

Using this Duramax coolant filtration system is easy. First, gather the recommended tools like a 10mm deep socket, 11/16 open - end wrench, etc. Then, attach the CNC - machined filter head to the supplied bracket and mount it in the factory holes where the secondary alternator was. Connect the pre - assembled silicone hose fittings. Once installed, start your engine, and the system will start filtering the coolant. For maintenance, replace the first filter after driving 500 miles. Replace the second and third filters after every 3,000 miles. After three filter changes, you only need to replace the filter once a year. Remember, no drilling is required for installation, so it's a hassle - free process.
